4x CNC Controller (Integrated ESP32 and TMC2209)

Name: 4x CNC Controller (Integrated ESP32 and TMC2209)
SKU: 37465
Price: 49.00 USD
Availability: InStock

A TMC2209 Motor Driver based CNC controller

Designed by Bart Dring in United States of America

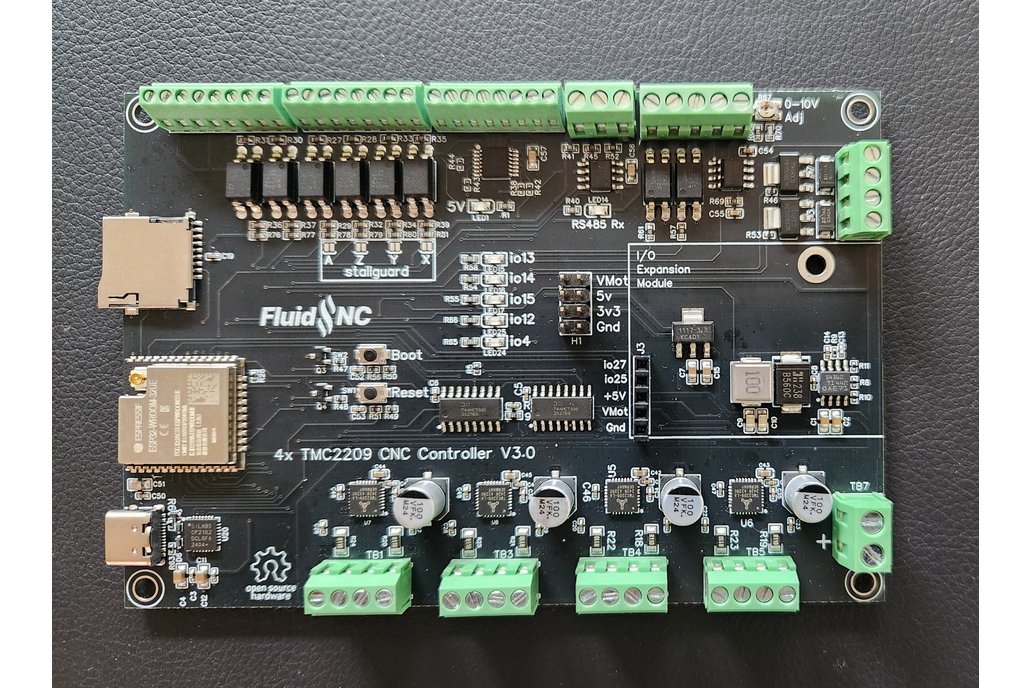

4x CNC Controller (Integrated ESP32 and TMC2209) 1

4x CNC Controller (Integrated ESP32 and TMC2209) 2



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Hardware and Electronics for Motion Control and CNC.

A TMC2209 Motor Driver based CNC controller

Overview Hello, I am Bart Dring. I am the designer of this controller and one of the original creators of FluidNC firmware. The profits from this controller directly help support the firmware develop…

Overview

Hello, I am Bart Dring. I am the designer of this controller and one of the original creators of FluidNC firmware. The profits from this controller directly help support the firmware development. Click here to see other products I have designed. Thank you for considering this product.

This is a 4 Axis CNC controller with (4) built in TMC2209 stepper motor drivers and a built in ESP32 module. The firmware has full control of the motor drivers via UART to set the microstepping, current and other features. You can use Stallguard sensorless endstops by directing that signal to limit switch inputs via solder jumpers.

It was intended to look very much like the 6x controller. The TMC2209 drivers do require more I/O than external drivers, so there are fewer inputs.

Features

(4) TMC2209 Stepper Drivers in UART Mode Can use stallguard for sensorless end stops
(6) inputs
(4) 5V Outputs
(2) 3A MOSFET Outputs
(1) 0-10V Spindle output
(1) RS485 interface for spindle VFDs
(1) I/O Expansion Module Socket
SD Card socket.
USB-C
