Our product is GERBER files and source files only!! No hardware! You can use these GERBER files for producing your dual power supply PCB boards. Also you can sell and redesign it too! The GERBER files are compatible with most PCB factories as: OSHPARK, SEEEDSTUDIO, ELECROW, PCBWAY, ITEAD.

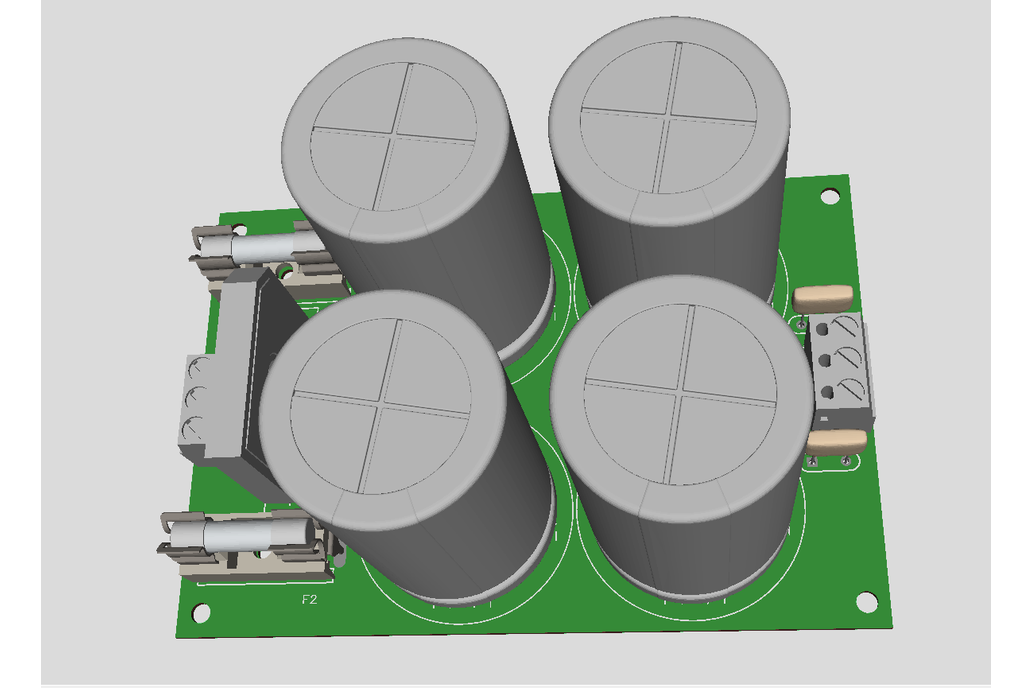

This board is single sided and you can use these files for homemade PCB with toner transfer technique. It has 75mm X 110mm and mainly was designed for 4700uF/63V electrolyte capacitors(you can add different capacitors according your needs).

After purchasing this offer, we will send you the whole documentation on your email address. This are the files that you will receive:

• GERBER files
• Source files
• BOM file
• PDF (Schematic, top and bottom layer)
• Pictures (software generated)

More GERBER files coming soon!!!
