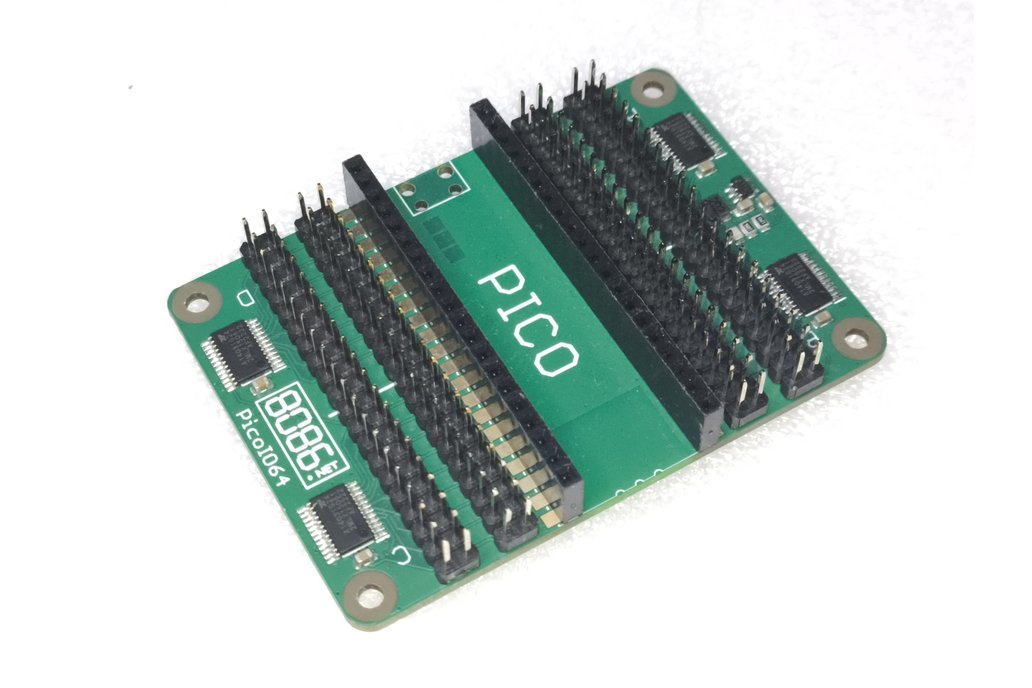

The PicoIO64 adds 64 3.3V I/O pins (5V tolerant) to the Raspberry Pi Pico using four 16-bit XRA1403 SPI I/O Expanders coupled with an 800mA 3.3V regulator. The I/O can be used for front panel LED, buttons interfaces, etc.

The I/O is arranged in two banks each with two 16-bit SPI expanders A/B and C/D, each bank has it's own SPI connection, IRQ, RESET and individual IC chip selects (CS_A/CS_B and CS_C/CS_D). Splitting the banks like this allows each banks SPI interface to be controlled using a dedicated core of the RP2040/RP2350 at up to 26Mhz.

The GPIO connections are documented on the underside of the PCB are shown in the table below.

The XRA1403 I/O expanders are fully featured, each of the I/O pins can be configured as push-pull output (optional three-state mode), input (optional polarity inversion, optional ~100k pull-up resistor) and a multitude of interrupt options (rising/falling edge, filters, etc.).

The I/O expanders can source/sink a maximum of 25mA per pin, up to 100mA per bank of 8 pins (0-7, 8-15) and overall the IC can source 160mA over all 16 pins.

A library to use the XRA1403 I/O expander with CircuitPython can be found on Github.

Models

• Self Solder Kit - PicoIO64 PCB and four 2x20 headers supplied, self supply Pico/Pico2 [W], self solder.
• Assembled - PicoIO64 with soldered 2x20 headers and socket for a Pico/Pico2 [W] with headers.
