PicoRelay8

Name: PicoRelay8
SKU: 29013
Price: 18.80 USD
Availability: InStock

Control 8 relays using a Raspberry Pi Pico [W]

Designed by 8086 Consultancy in United Kingdom



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Control 8 relays using a Raspberry Pi Pico [W]

The PicoRelay8 allows eight 28V DC / 10 Amp Normally Open relays to be controlled using a Raspberry Pi Pico [W]. Each relay is controlled by a Pico GPIO pin - setting the pin high will close the rela…

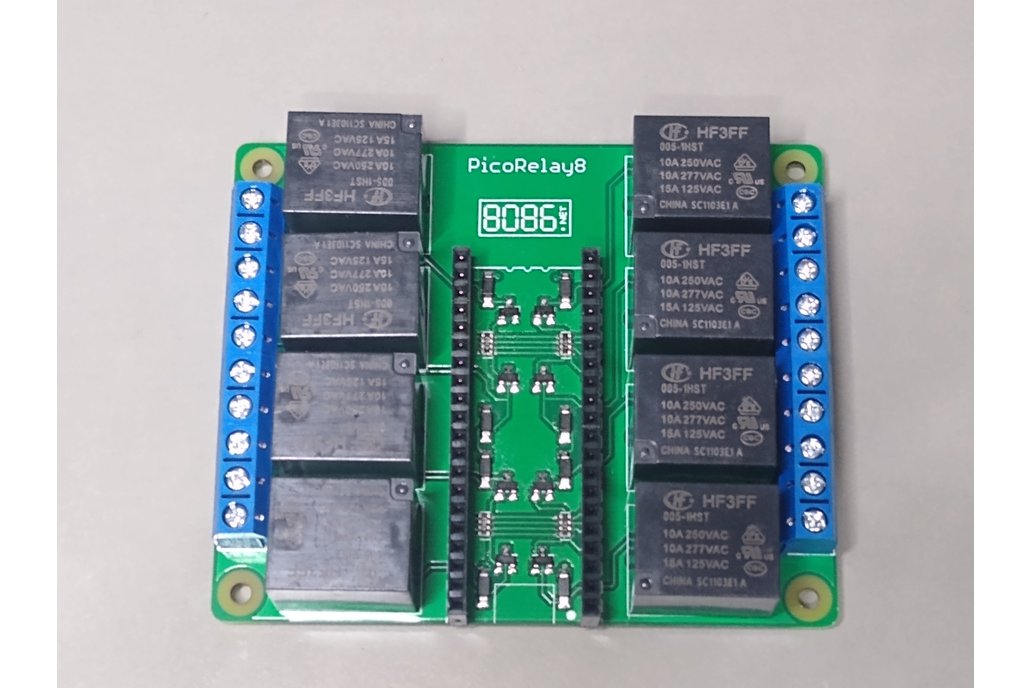

The PicoRelay8 allows eight 28V DC / 10 Amp Normally Open relays to be controlled using a Raspberry Pi Pico [W].

Each relay is controlled by a Pico GPIO pin - setting the pin high will close the relays contacts allowing you to turn on the device and setting the GPIO pin low will open the contacts turning it off.

Relay	Pico GPIO
A	GP13
B	GP10
C	GP5
D	GP2
E	GP3
F	GP4
G	GP11
H	GP12

The HF3FF/005-1HST relays are rated for 10 Amps at 28 Volts DC and have Silver Tin Oxide (AgSnO2) contacts for better switching of high inrush currents.

The PicoRelay8 MUST NOT BE USED TO SWITCH MAINS VOLTAGES.

When all 8 relays are energised the PicoRelay8 will use just under 500mA so please ensure the power supply/computer is capable of supplying 500mA or ensure all relays are not energised together.
