USB3 Coupler

Name: USB3 Coupler
SKU: 36036
Price: 3.00 USD
Availability: InStock

Connect an adapt USB3 cables.

Designed by 8086 Consultancy in United Kingdom









Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Connect an adapt USB3 cables.

These adaptors allow you to couple/convert USB3 cables. There are six different combinations of adaptor combining the options of USB3 data swaps (TX<>TX+RX<>RX or TX<>RX+RX<>TX) and connector type (P…

These adaptors allow you to couple/convert USB3 cables.

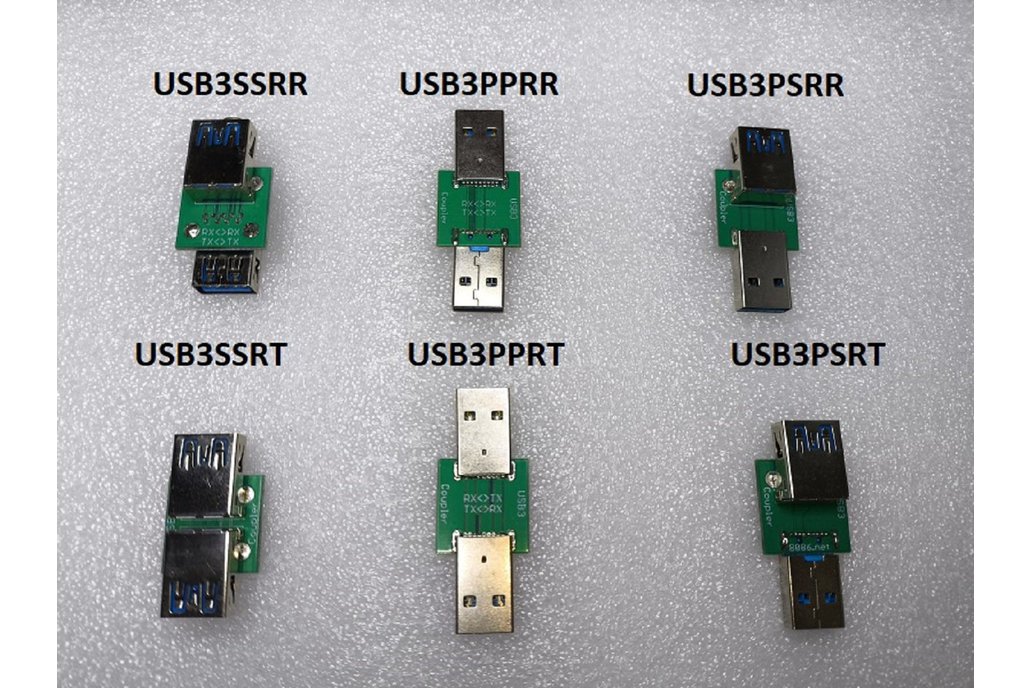

There are six different combinations of adaptor combining the options of USB3 data swaps (TX<>TX+RX<>RX or TX<>RX+RX<>TX) and connector type (Plug or Socket).

USB2 data is connected on all couplers (D+ to D+ and D- to D-) as these don't normally need to be swapped.

Name	Connector 1	Connector 2	USB3 Data	USB 2 Data
USB3PPRR	Plug	Plug	RX<>RX, TX<>TX	D+<>D+, D-<>D-
USB3PPRT	Plug	Plug	RX<>TX, TX<>RX	D+<>D+, D-<>D-
USB3PSRR	Plug	Socket	RX<>RX, TX<>TX	D+<>D+, D-<>D-
USB3PSRT	Plug	Socket	RX<>TX, TX<>RX	D+<>D+, D-<>D-
USB3SSRR	Socket	Socket	RX<>RX, TX<>TX	D+<>D+, D-<>D-
USB3SSRT	Socket	Socket	RX<>TX, TX<>RX	D+<>D+, D-<>D-
