uUSB/USB-C CDC Serial Adaptor (5v)

Name: uUSB/USB-C CDC Serial Adaptor (5v)
SKU: 18534
Price: 5.00 USD
Availability: InStock
Rating: 4.82 (7 reviews)

(7 Reviews)

5v UART to CDC USB adapter

Designed by 8086 Consultancy in United Kingdom






Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Due to GPSR I'm no longer shipping to the EU or Northern Ireland.

5v UART to CDC USB adapter

USB Serial Adaptor - with either micro USB or USB-C connector. Using jumper wires it can be used for Arduino programming (using RTS for reset), etc. We use through hole connections on both micro USB …

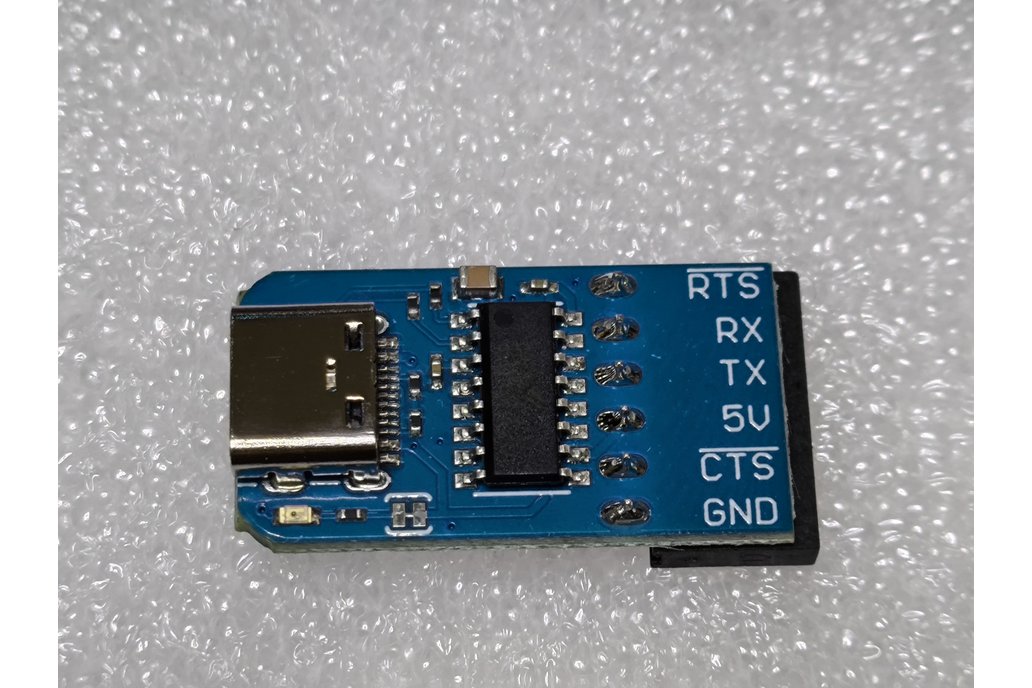

USB Serial Adaptor - with either micro USB or USB-C connector.

Using jumper wires it can be used for Arduino programming (using RTS for reset), etc.

We use through hole connections on both micro USB and 6 way 0.1" header socket for a more robust product over the surface mount alone.

Pinout	Description
RTS	Request to send
RX	Receive (connect to remote TX)
TX	Transmit (connect to remote RX)
5V	5V supply
CTS	Clear to send
GND	Ground

The following baud rates are supported

Baud rate	Miss rate (%)
2,400	0.16
4,800	0.16
9,600	0.04
19,200	0.04
38,400	0.16
57,600	0.16
115,200	0.16
230,400	0.16
460,800	0.79
1,700,000	0.84
2,300,000	0.62
3,400,000	0.84

This board can only be used with systems using 5 volts, connecting to those using higher/lower voltages may result in damage.

The IC is used in the adapter enumerates as a Communication Device Class (CDC) device which modern (Win10/Linux/Mac OS X) operating systems have built in drivers for.

Ideal for use with the RC2014 range from RFC2795 Ltd.
