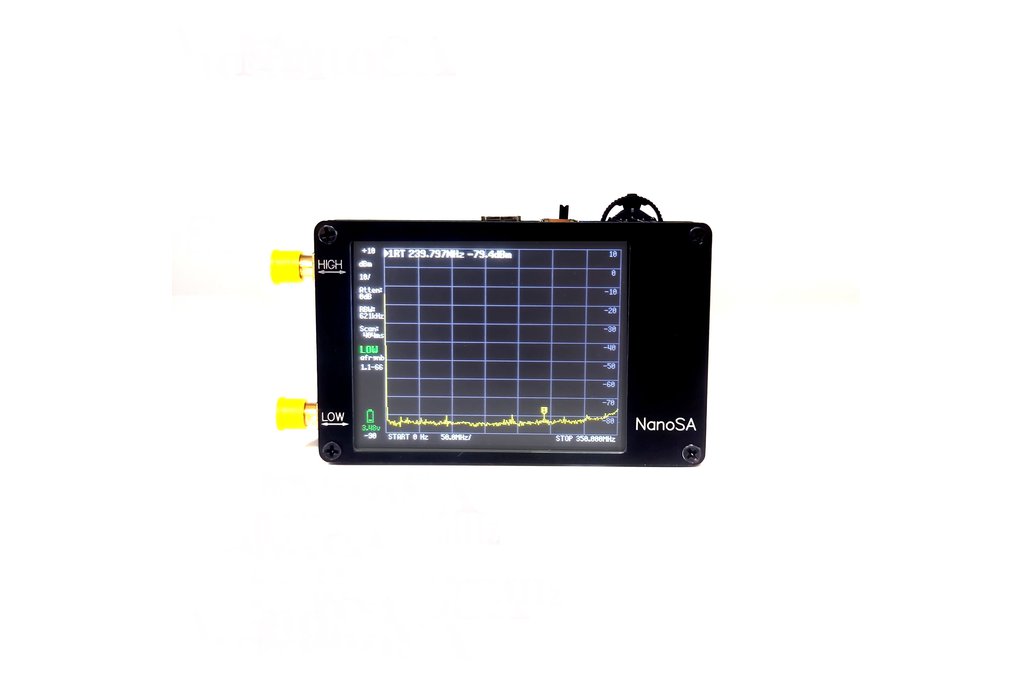

【Input Frequency Range】Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. 【2-in-1】Built-in calibration signal generator that is used for automatic self test and low input calibration.When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square wave output between 240MHz-960MHz. 【2.8inch Touching Display Screen】Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz.Color display showing 290 scan points covering up to the full low or high frequency range. 【PC Controlled 】Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer.Bulit-in rechargeable battery allowing a minimum of at least 2 hours portable use.

specification: Display resolution 320 * 240 pixels 2.8 inches diagonal screen 16 bits per RGB pixel Resistive touch Jog switch control USB serial port control Optional TTL USART port on the internal PCB (SW not yet implemented) The linear power supply can avoid switching noise.

4 input/output modes: Low input mode: 100kHz to 350MHz High input mode: 240MHz to 960MHz Low output mode: 100kHz to 350MHz (sinus) High output mode: 240MHz to 960MHz (square wave)

Optional square wave output, fundamental frequency is -25dBm, connected to high input/output. The frequency can be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz. Battery: The charging time on the minimum 500mA USB port or USB charger is up to 1 hour. Run for at least 2 hours on a fully charged battery. PC control: The USB interface implements the USB serial protocol (CDC), and a large number of commands can be called through the serial interface. These commands can be used to perform measurements or update internal settings. The Windows driver will be installed automatically after connecting to the Windows PC. Linux drivers are built into the kernel.

Packing list

1 Tiny Spectrum Analyzer; 2 x 20 cm RF cable; 1 x USB cable; 1 x SMA female to female connector; 1 pick; 1 x SMA telescopic antenna
