RetroShield 68008 for Arduino Mega

Name: RetroShield 68008 for Arduino Mega
SKU: 37449
Price: 30.00 USD
Availability: InStock

Add a classic microprocessor to your Arduino Mega

Designed by 8-Bit-Force in United States of America






Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Updates: 1) New retroshields 8008, 68008 and 14500. 2) Apologies, I have to update the prices due to higher costs and fees. I kept them the same for the past 6 years. Thank you for your support.

Add a classic microprocessor to your Arduino Mega

My Brain-In-A-Jar Project We need a 16bit processor, so here is the Retroshield 68008: 68008 running at 8MHz (optionally 10Mhz or 12MHz if chip is rated) uses wait states for memory & IO accesses so…

My Brain-In-A-Jar Project

We need a 16bit processor, so here is the Retroshield 68008:

68008 running at 8MHz (optionally 10Mhz or 12MHz if chip is rated)
uses wait states for memory & IO accesses so 68k executes instructions at full speed.
Clock freq can be adjusted up or down via software.
Works with both Arduino Mega 2560 or Teensy adapter (lots of RAM)

You can play with these three platforms:

Motorola M68000 Educational Board (ECB) w/ TUTORBUG monitor - includes assembler and disassembler!
Steve's 68KATY SBC, running a modified version of Wichit Sirichote's open source monitor code
uClinux using RAM disk, thanks to Steve at https://www.bigmessowires.com/. (This requires Teensy adapter kit due to memory requirements.)

What do you get?

Following options are available:

Asembled and tested

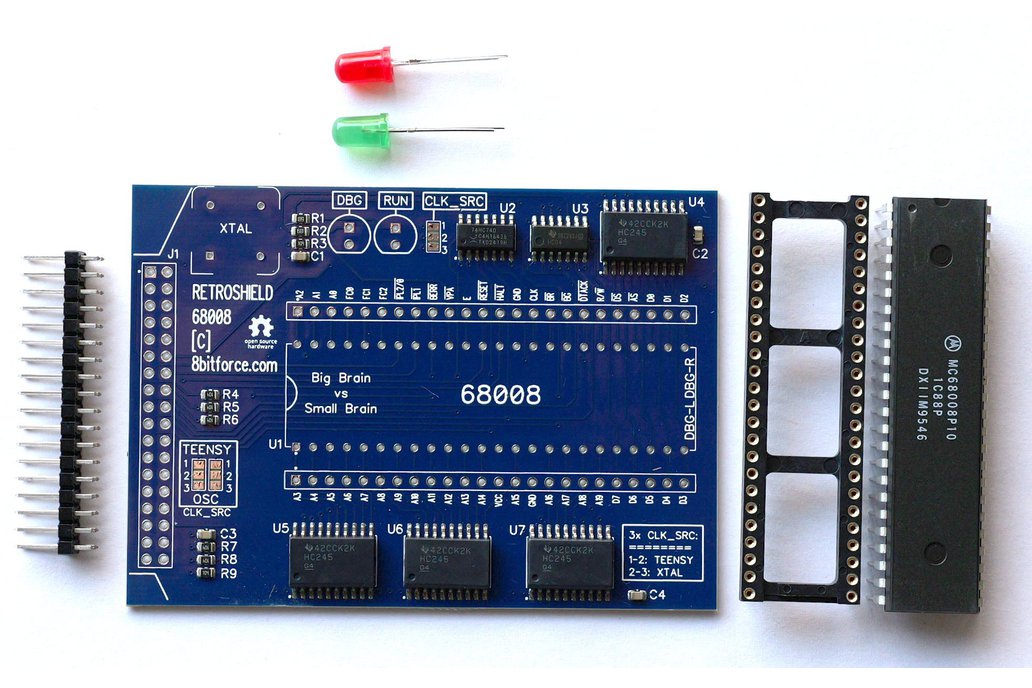

Kit including 68008 processor (you solder through-hole parts)
PCB only (SMT parts already soldered for you)

What makes it special?

You can "breadboard in software" meaning you can design, change, update your hardware platform as easily as modifying the source code and recompiling code.
