ATtiny85 USB Development Tool Board for arduino V0

Name: ATtiny85 USB Development Tool Board for arduino V0
SKU: 1818
Price: 4.85 USD
Availability: Discontinued
Rating: 3.25 (13 reviews)

(13 Reviews)

**It's an open-hardware and open-software board**

Designed by BBTech in Taiwan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From DIY Electronics

Faikin : Alternative Daikin WiFi controller

Elfatronics

$28.00

SparKIT - Mini Electrostatic Generator

SparKIT

$29.95

duckyPad: Do-It-All Mechanical Macropad

dekuNukem

$69.99

Sale

PWM 16A 3500W Triac Leading EDGE Dimmer 50HZ 60HZ

KRIDA Electronics

$42.00 $46.95

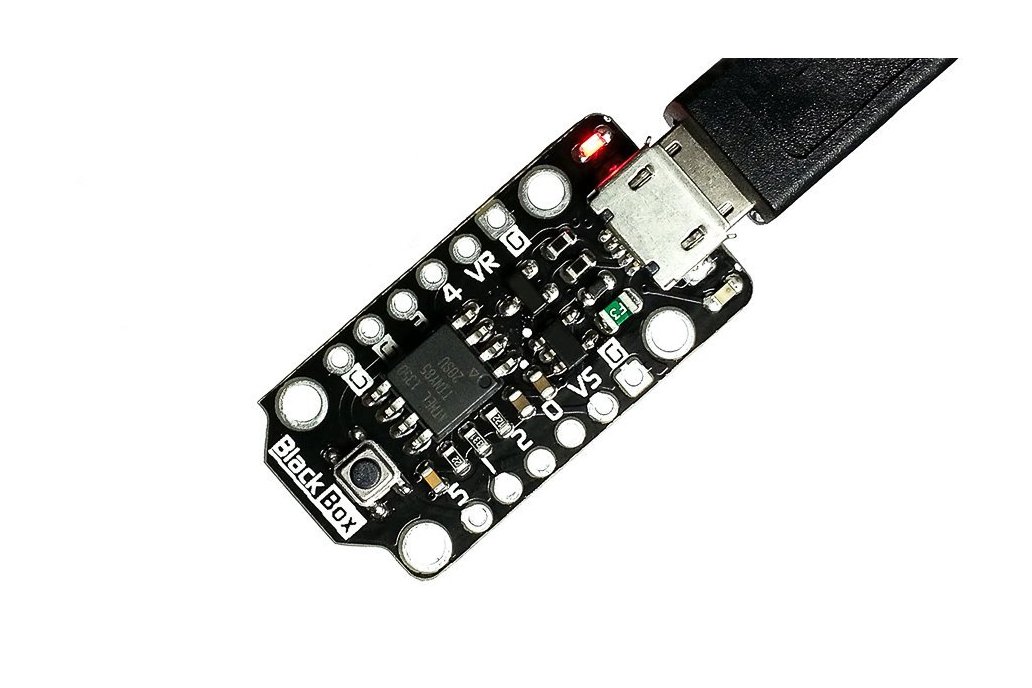

ATtiny85 USB Development Tool Board for arduino V0 1

ATtiny85 USB Development Tool Board for arduino V0 2

ATtiny85 USB Development Tool Board for arduino V0 3

ATtiny85 USB Development Tool Board for arduino V0 4

2014-02-27T16:02:46.674Z-schematic_v1.01 (1).jpg


Thank you for visiting our tindie store! we introduced a variety of unique electronic parts, hope you like it.

It's an open-hardware and open-software board

Details On board micro USB 5pin interface. On board button for PB5. 6-pin version will be using it as a custom function switch. For example: short press for the customization function, long press sw…

Details

On board micro USB 5pin interface.
On board button for PB5.
- 6-pin version will be using it as a custom function switch.
- For example: short press for the customization function, long press sw-reset function.
On board power red led and PB1 green led.
bootloader micronucleus v1.11 5-pin or 6-pin version.
- 6-pin version: you will no longer be able to use ISP programmers with the chip.
VR accepts 5.5 ~ 12V input (reverse protection).
VS is a 5V output.(automatic selection)
- USB powered can provide 350mA with PTC protection.
- Ext. powered can provide 150mA with current limiting and over-temperature shutdown.
Reserved USI-I2C pull-up resistors for PB0 and PB2(PCB backside).
PCB size: 29.8 x 15.2mm (breadboard friendly).
No need to connect any circuit to start writing software, a custom function buttons and a custom function LED lights.
Schematic downloaded from here.

Review Breakdown

Average Ratings

Product: (3.67)

Documentation: (2.00)

Shipping: (4.33)

Communication: (3.00)

Doop Oy | Sept. 21, 2014

Nice board - a bit hard to get things rolling

First I have to say this board is really worth the money. Super small pre-programmed Arduino compatible Attiny85 with micro USB and shipping - all this under $4. However the documentation is a bit sparse, and getting this to work with OS X included some serious head scratching. This blog post pointed me to right direction.

http://uberhack.net/new-arduino-compatible-mini-board/

Hope this helps.

Matthew | Aug. 15, 2014

Great product. Make sure you know how to use.

Have bought several of these in different batches. They're well made and great value for money. Only improvements I can suggest would be with the documentation, but if you're buying these you should be able to find it elsewhere.

Joseph | July 31, 2014

board did not work .

I bought 2 boards. the boards were not cut to separate pieces.
they probably were not installed with bootloader, since hitting boot button did not cause the led to blink.
they did not work on mac - os/x were not recognised as usb devices.
left a comment on the product page. did not get an answer.the comment was erased
disappointed.
joseph.

Paul | July 17, 2014

Best attiny85 dev/breadboard/breakout board I have used

Works very well. I plan on ordering a second one.

Mateusz | April 20, 2014

Awesome board!

Awesome board for start having fun with v-usb!
I'm including my blink example for quick start.
https://github.com/matbaj/blink

Pier Sante | April 7, 2014

purchase problem

Didn't received yet. where is my tiny?

Piersante

Response from BBTech | April 7, 2014

For economical shipping method, please wait it 1 to 2 weeks. thanks.

Luca | April 5, 2014

Micro-USB problems

Great product, but the micro-USB port is not good: it gets loose after a few times, and because you need to disconnect in order to upload your sketch, this is a big problem. In fact, HID USB device is no longer recognised, even if I can still upload sketches (but with more errors).
Ladyada Trinket, which has a mini-USB port instead and a reset button (no need to disconnect then) seems to be more robust. I need to try out.

Response from BBTech | April 5, 2014

Hi, we also have a reset button. Thank you for your feedback.

Sergej | April 4, 2014

Great little board

I bought two of them hoping they would save me some time compared to buying just Attiny85 and soldering them along with other components. When they arrived I was amazed! For such price I never expected such quality.

Sivert Valved | April 2, 2014

Fun to play with, but had difficulty with drivers for window

The component works as expected. I got it working with atmel studio and arduino after downloading DigisparkArduino and DigisparkWindowsDriver and after a lot of trail an error i found that you had to use the drivers ziped inside DigisparkWindowsDriver-> _DriverFiles.zip. for windows 8. Someone should make proper windows 8 driver.
I uploaded the TinyQED I2C Quadrature Decoder sw and with some pullup resistors i was able to get get my encoder count to my arduino mega via I2C.

Horacio | March 29, 2014

Attiny 85 module

Received in perfect condition. Thank you.

Dirk | March 25, 2014

Excellent poduct for an unbeatable price

Not much to add, but that's a good thing :-)
The board performs as advertised and for a more authorative review, look at Bluebie's comments.
Will order again.

Patrick | Feb. 15, 2014

Awesome board!

Very well design board. I like the small size USB capable with all the good feature of the ATtiny85! Thanks!

Response from BBTech | Feb. 15, 2014

Really glad you like it.

Jenna | Feb. 7, 2014

This is great!

I'm the founder of the Micronucleus bootloader project. When I saw these I had to get a couple. After playing with them a bit, I'm really pleased by the surprisingly high build quality for such an aggressively priced product. I think this is better than the Digispark, because it ships with a more recent bootloader containing important bugfixes, and because it works more nicely with breadboards and has a much better USB connector. I think it's better than the Trinket because the bootloader is much more compact, giving you quite a lot more space for your programs, which is really important as these little tiny chips don't have much to begin with.

Really great product at a really good price. I'm looking forward to never having to solder up one of these circuits by hand again! If there was one thing I could change, it'd be a clearly marked area for disabling the power LED. Aside from that, seems brilliant! Good to see Micronucleus helping make arduino-like devices available in more affordable forms ^_^

Response from BBTech | Feb. 7, 2014

Hi bluebie, many thanks for your review. ^^
