BH1750FVI Ambient Light Sensor Module

Name: BH1750FVI Ambient Light Sensor Module
SKU: 1442
Price: 4.95 USD
Availability: Discontinued

Designed by BBTech in Taiwan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Thank you for visiting our tindie store! we introduced a variety of unique electronic parts, hope you like it.

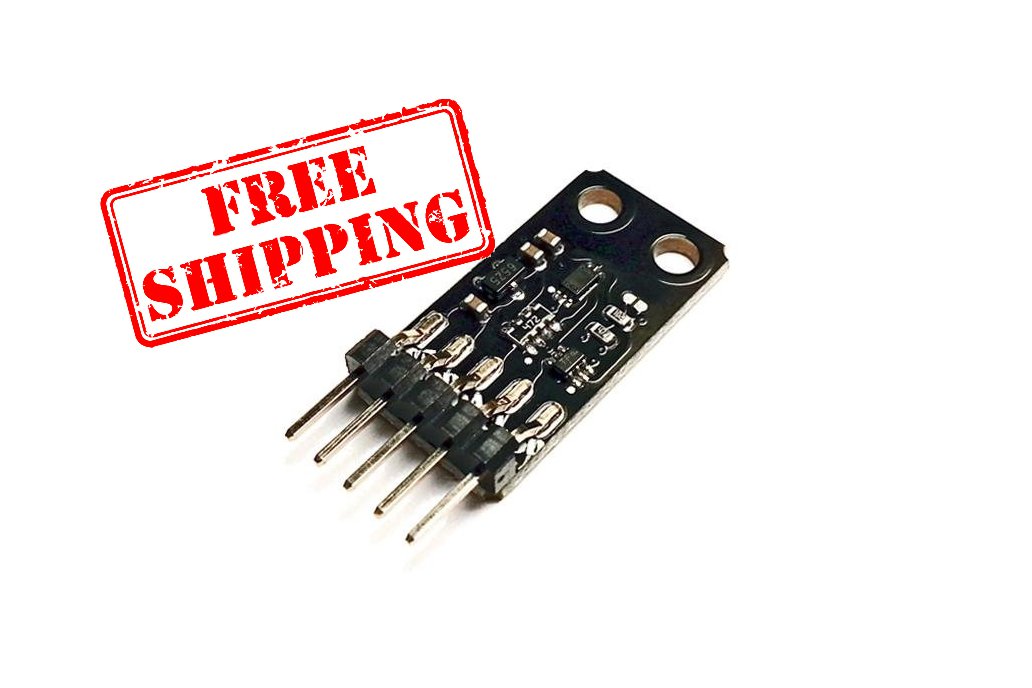

BH1750FVI Ambient Light Sensor Module

Details Base on ROHM BH1750FVI. Absolute maximum ratings supply voltage (VDD): 3 ~ 6 VDC. Recommended supply voltage (VDD): 3.3 ~ 5 VDC. I2C digital interface. Spectral responsibility is approximate…

Details

Base on ROHM BH1750FVI.
Absolute maximum ratings supply voltage (VDD): 3 ~ 6 VDC.
Recommended supply voltage (VDD): 3.3 ~ 5 VDC.
I2C digital interface.
Spectral responsibility is approximately human eye response.
Wide range and high resolution. (1 - 65535 lx).
More information, Please refer BH1750FVI Datasheet.
It is possible to select 2 type of I2C slave address, on board jumper.
Compact module size: 25 x 12.7 mm / 0.98 x 0.5 in.
Device PIN description: (arduino / 3.3v MCU / 5v MCU compatible, voltage regulator, I2C Bus have level shifter).
- PIN1: GND.
- PIN2: VDD.
- PIN3: SDA (built-in pull-up resistor).
- PIN4: SCL (built-in pull-up resistor).
- PIN5: ADD (address pin, usually not used).
- Pin to pin pitch: 2.54 mm / 0.1 in.
