BMP180 Digital Barometric Pressure Measurement Module V1

Name: BMP180 Digital Barometric Pressure Measurement Module V1
SKU: 3700
Price: 6.80 USD
Availability: Discontinued

BMP180 Digital Barometric Pressure Measurement Module

Designed by BBTech in Taiwan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From DIY Electronics

FlippenHeimer -Geiger Counter for the Flipper Zero

Erwin Ried

$44.99

Sale

duckyPad Pro: Macro Scripting Beyond QMK/VIA

dekuNukem

$80.74 $84.99

uConsole USB ext. board

Joe

$40.00

Megadesk

Greg's Tinker Town

$40.00

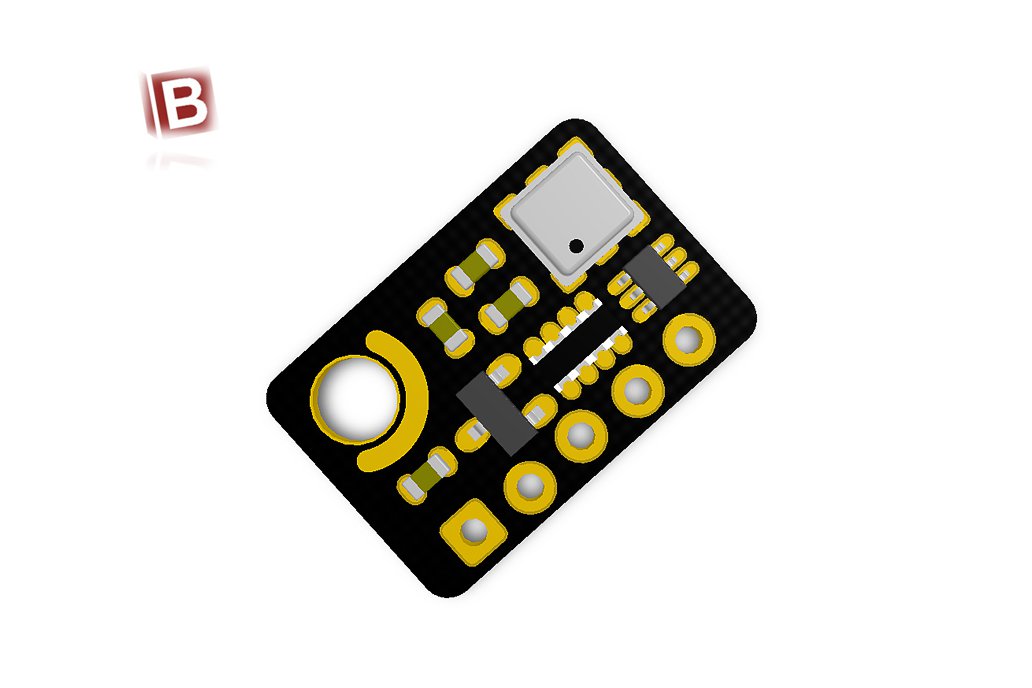

BMP180 Digital Barometric Pressure Measurement Module V1 1

Thank you for visiting our tindie store! we introduced a variety of unique electronic parts, hope you like it.

BMP180 Digital Barometric Pressure Measurement Module

Details Recommended Supply Voltage (VDD): 2 ~ 5 VDC. Pressure Range: 300 ~ 1100hPa (+9000m ~ -500m Above Sea Level). I2C Digital Interface, Support I2C High-speed Mode (Max. 3.4MHz). Temperature Mea…

Details

Recommended Supply Voltage (VDD): 2 ~ 5 VDC.
Pressure Range: 300 ~ 1100hPa (+9000m ~ -500m Above Sea Level).
I2C Digital Interface, Support I2C High-speed Mode (Max. 3.4MHz).
Temperature Measurement Included.
More Information, Please Refer BMP180 Datasheet.
Compact Module Size: 10 x 15 mm, PCB is Gold Plated.
I2C bus built-in level conversion function, you can be used with other I2C devices.
Device PIN Description:
- PIN1: GND.
- PIN2: 5V Power Input.
- PIN3: SDA (built-in pull-up resistor, to cancel via jumper).
- PIN4: SCL (built-in pull-up resistor, to cancel via jumper).
- PIN5: 3.3V Power Output / 2V ~ 3.3V Power Input.
- Pin to Pin Pitch: 2.54 mm / 0.1 in.
