Multi-purpose USB Isolator (Built-in DC-DC)

Name: Multi-purpose USB Isolator (Built-in DC-DC)
SKU: 2222
Price: 36.00 USD
Availability: Discontinued

Designed by BBTech in Taiwan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From Prototyping & Fabrication

PMW3360 Motion Sensor

Joe's Sensors and Sundry

$29.40

14-Pin JTAG to 10-Pin SWD Adapter

Ratsnest Designs

$3.00

FPGA Mezzanine Card (FMC) HPC to LPC Breakout boar

I A M Electronic

$205.00

FPGA Mezzanine Card (FMC) Power Module

I A M Electronic

$229.00

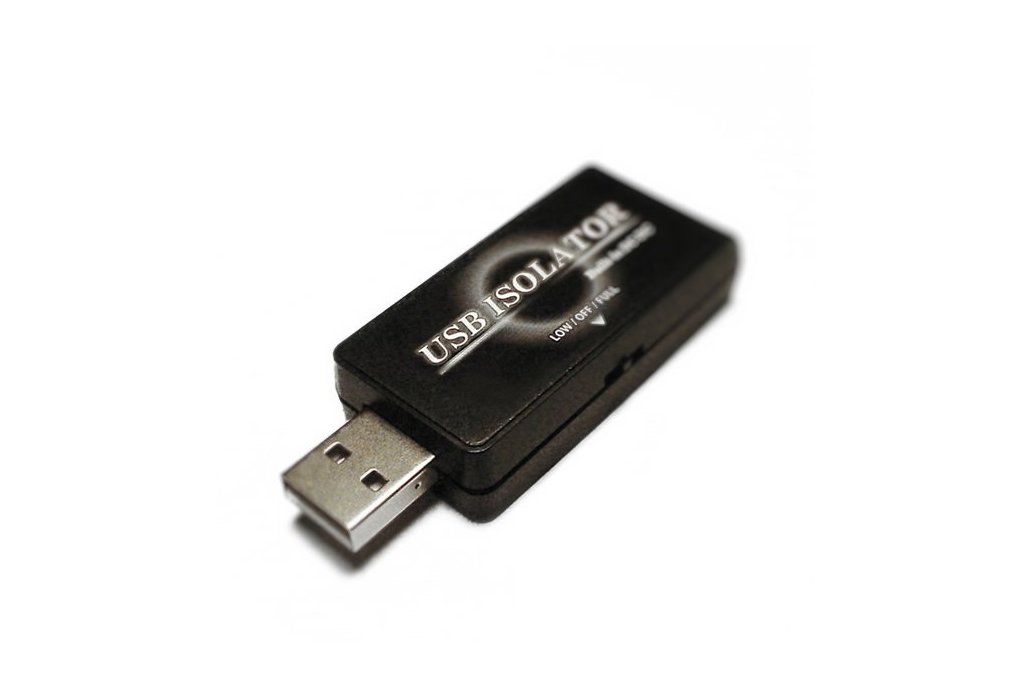

Multi-purpose USB Isolator (Built-in DC-DC) 1

Thank you for visiting our tindie store! we introduced a variety of unique electronic parts, hope you like it.

Details Support USB 1.1 low speed (1.5Mbps) and USB 2.0 full speed (12Mbps), build-in isolated DC-DC converter (no external power supply needed). Mode switch: Low Speed / BUS OFF / Full Speed, Under…

Details

Support USB 1.1 low speed (1.5Mbps) and USB 2.0 full speed (12Mbps), build-in isolated DC-DC converter (no external power supply needed).
Mode switch: Low Speed / BUS OFF / Full Speed, Under the "BUS OFF" mode, isolated power supply is valid, you can only use isolated power supply.
Compact size 6.4 * 2.6 * 1.35 cm, USB-A plug for PC, USB-A socket for USB device.
Base on ADI ADUM4160 USB digital isolator.
USB power output (maximum): 5VDC ±10% ≦400mA.
Power and data isolation: 1KV.
Note: It will not charge properly for mobile devices. (It's main function is to isolate the USB power and signals.)
