Overview:

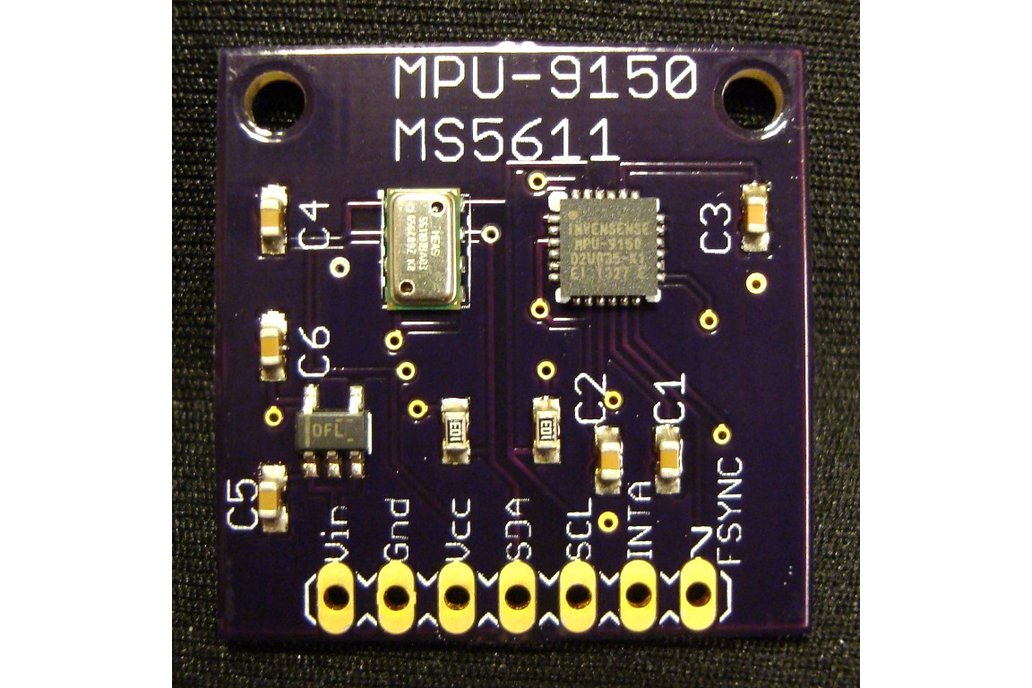

Board features a 3-axis accelerometer, gyroscope, magnetometer, and barometer/altimeter. Powered by 5v* or 3.3v, and using I2C, this board is powerful and versatile!

Details:

• Size: 1" x 1"
• Voltage: 3.3v or 5v* (built in 3.3v regulator)
• Mounting: 2x 0.1" Diameter holes, spaced 0.8" apart.
• Solder jumpers: I2C pullup resistors, MPU-9150 Address Select, MS5611 Address Select. Jumpers SJ1, SJ2, and SJ3, respectively.
• Pinout: Vin, Gnd, Vcc(3.3v), SDA, SCL, INTA, FSYNC. Pins 1-7, respectively.

*Note: For operation with 5v devices, the I2C bus must remain pulled up to 3.3v. This may require adjustment of other devices to recognize 3.3v as Vlogic. No pins on the 9150 / 5611 board may exceed 3.3v.

A quick search will reveal many guides, code, and datasheets available online for the MPU-9150, as well as its predecessor, the MPU-6050. Data is also available for the MS5611. Files and links of interest are Here.

The boards were fabricated from OSHPark, and components placed carefully. All boards are tested before being shipped out.

This project is based upon Fabio's FreeIMU project. Unfortunately, Fabio passed away in December of 2012. We build upon the shoulders of those who came before us; This board is an updated version of his project, utilizing the newer MPU-9150.

Contents:

• 1x populated MPU-9150 / MS5611 Breakout Board
• 7x Straight .10" header pins
• 7x Bent .10" header pins

Shipping:

USPS First-Class with confirmation (USA)

USPS Priority with Confirmation (USA)
