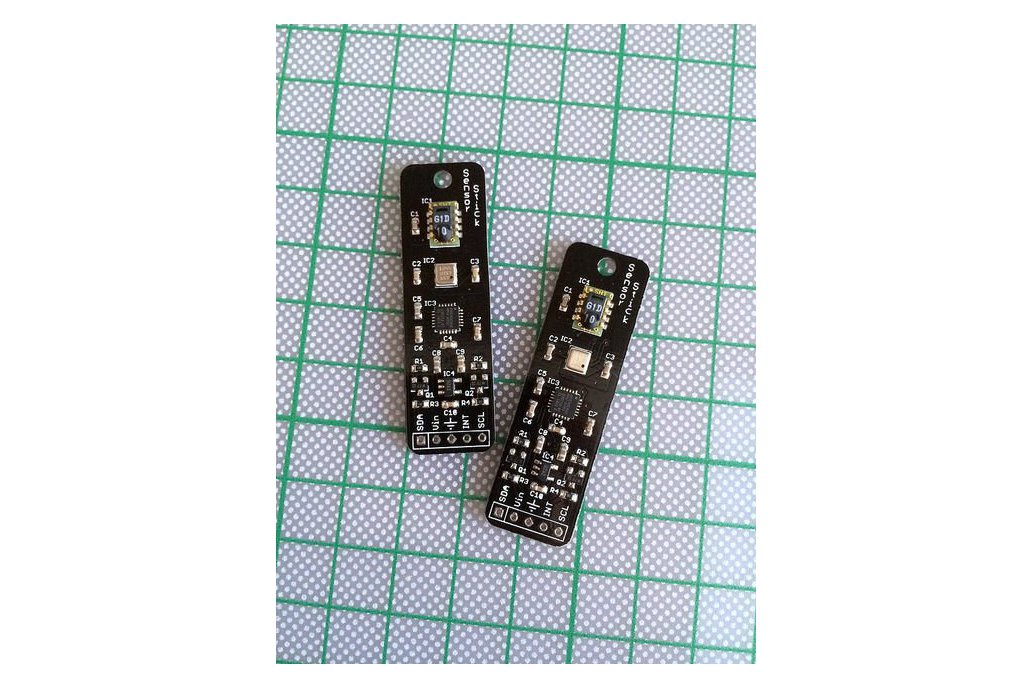

This is a small form factor PCB that includes three of the most popular sensors of the makers/hackers community. The SHT10 (temperature and humidity), the MPU6050 (3-axis gyroscope, 3-axis accelerometer, temperature) and the BMP180 (pressure and temperature). All of them are connected together via the easy to use I2C bus. On the PCB you will find a clear indication for the voltage range, the sensor name for quick searching, the read and write I2C addresses together with the pin out labeling. On top of those, a graphic representation of the sensor measuring values gives a better understanding of what you should expect as an output.

Using the onboard low dropout regulator (an LDO made by Microchip) the module can work under a wide operating voltage range - from 3V all the way up to 6V!

For more info about this sensor module and more have a look here: http://embeddedday.com/projects/sensor-stick/

Pay attention! This is just a Bare PCB without any components at all! You have to source the components and solder them by yourself! But... all the components are super easy to find and the soldering process is just fun!

For a fully made and tested SensorStick Module have a look here: https://www.tindie.com/products/EmbeddedDay/sensor-stick-3/
