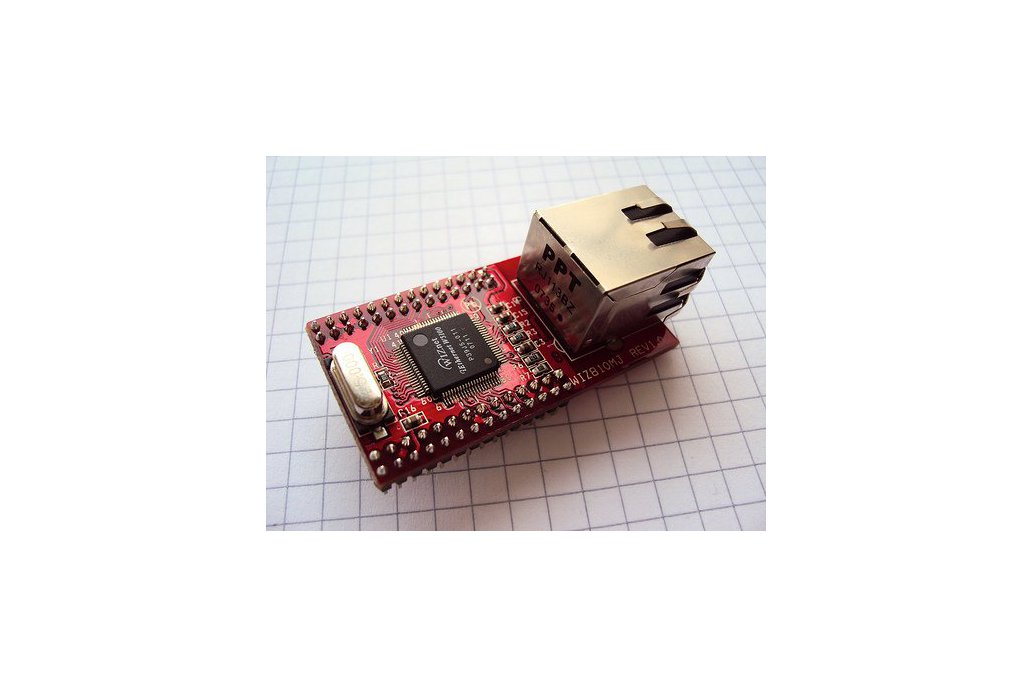

WIZ810MJ is the network module that includes W5100 (TCP/IP hardwired chip, include PHY), MAG-JACK (RJ45 with X’FMR) with other glue logics. It can be used as a component and no effort is required to …
WIZ810MJ is the network module that includes W5100 (TCP/IP hardwired chip, include PHY), MAG-JACK (RJ45 with X’FMR) with other glue logics. It can be used as a component and no effort is required to interface W5100 and Transformer. The WIZ810MJ is an ideal option for users who want to develop their Internet enabling systems easily and rapidly!
Supports 10/100 Base TX
Supports half/full duplex operation
Supports auto-negotiation and auto crossover detection
IEEE 802.3/802.3u Complaints
Operates 3.3V with 5V I/O signal tolerance
Supports network status indicator LEDs
Includes Hardware Internet protocols: TCP, IP Ver.4, UDP, ICMP, ARP, PPPoE, IGMP
Includes Hardware Ethernet protocols: DLC, MAC
Supports 4 independent connections simultaneously
Supports MCU bus Interface and SPI Interface
Supports Direct/Indirect mode bus access
Supports Socket API for easy application programming
