20W dummy load, consisting of four 43 Ohm 5W resistors, with a terminal to sense current and voltage.
Designed by FemtoCow in United States of AmericaNo shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up to get notified when this product is back in stock!

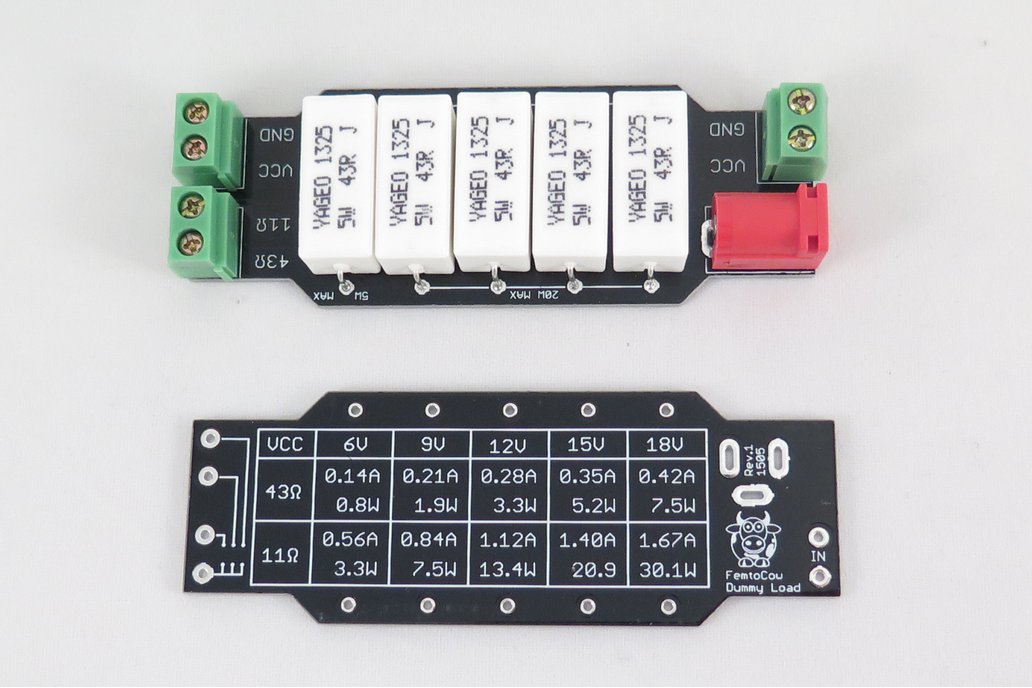

Simple resistor dummy load. Consists of four 43 ohm 5W resistors connected in parallel to get 11 ohm 20W and one standalone 43 ohm 5W. Good for testing power supplies. The kit has DC jack and screw t…
Read More…Simple resistor dummy load. Consists of four 43 ohm 5W resistors connected in parallel to get 11 ohm 20W and one standalone 43 ohm 5W. Good for testing power supplies. The kit has DC jack and screw terminal on input and two screw terminals on output to measure voltage and current. Back side has a table of currents you can expect when you connect given voltage on given resistor.
Connect voltage source on the input. Connect multimeter current probe between GND terminal and 11 ohm/43 ohm terminal. Or you can just connect wire if you don't need to measure current. Comes as a kit, you need to solder it by yourself. Caution: may get hot, do not leave unattended.
