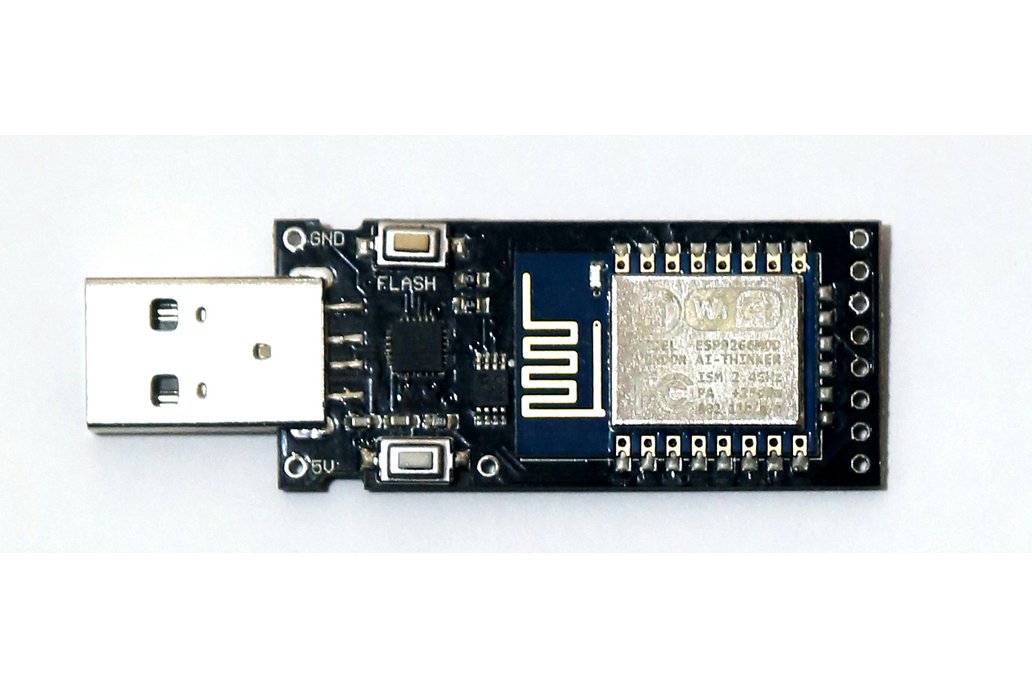

WiThumb is a product successfully funded on KickStarter. It is now generally available.

With WiThumb, adding WiFi, temperature sensor, Gyroscope and Accelerometer to your IoT project is a breeze. In addition, the ABS plastic case not only protects the circuits but also adds professional look to it. Why bother messy wiring or ugly project boxes while you can get this elegantly dressed up WiThumb.

In addition, WiThumb could be powered by standard USB type-A ports found in many power adapters, computers, TV, routers, cars, solar chargers and etc. It makes WiThumb an ideal device to deploy your applications anywhere.

Specifications

• 32-bit MCU with 802.11b/g/n WiFi (ESP8266)
• Integrated TCP/IP protocol stack
• 4MB Flash memory
• Precision temperature sensor (+/- 0.25C typical accuracy)
• 6-axis Gyroscope + Accelerometer
• 3.3V IO pins: One 10-bit ADC, I2C and SPI (GPIO pins G12-15)
• Breadboard friendly (0.1" pitch header holes)
• ABS plastic case

Languages and Applications

WiThumb is not only compatible with Arduino, it also runs micropython (a lean and efficient implementation of the Python3 programming language) and LUA.

In addition, being Arduino compatible, many sensor and WiFi libraries are readily available. For example, it is very easy to build a WiFi thermometer, to post the data to IoT cloud (e.g. on data.sparkfun.com) and to plot graphs using Analog.io).

Also, it takes no time to build a local IoT cloud with Raspberry Pi and WiThumb because of the MQTT protocol.

Applications

Possibilities are endless. To name a few:

• Internet connected thermometer
• IMU (Inertial measurement unit) for drones and robots
• As a smart device in home automation
• WiFi Access Point
• Home/Office Security (using IMU)
• Industrial temperature sensing (e.g. in data center, storage)
• IoT gateway
• WiFi sniffer
• Monitor TV usage (e.g. WiThumb is powered when TV is on)
• Monitor driver's driving habits
• With additional circuits through I2C, GPIOs and ADC, WiThumb could be the controller of many projects (WiFi controlled switches, LED control, WiFi compass, WiFi enabled soil moisture sensor, etc.)
