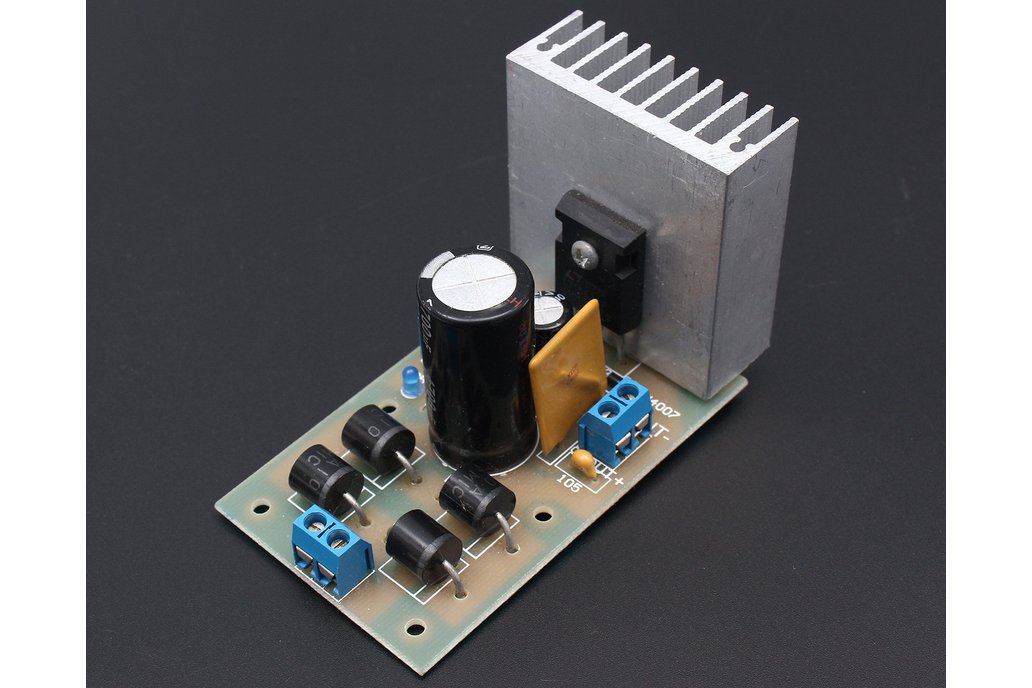

Based on low three steadied chip LT1083 adjustable regulated power supply module.
Designed by ICStation in ChinaThis seller is taking a break until June 16, 2025. Sign up below to get an email when they're back!
This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
A. Principle Circuit mainly has four 10 a10 rectifier diode, rectifier circuit, composed of 50 v / 4700 uf capacitance, TL1083, adjustable voltage regulator circuit, composed of W502 potentiometer, a…
Read More…A. Principle
Circuit mainly has four 10 a10 rectifier diode, rectifier circuit, composed of 50 v / 4700 uf capacitance, TL1083, adjustable voltage regulator circuit, composed of W502 potentiometer, and 7 a self recovery fuse output circuit 1. The four 10 a10 rectifier diode, converting ac power to dc power supply, through 50 v / 4700 uf capacitor filter

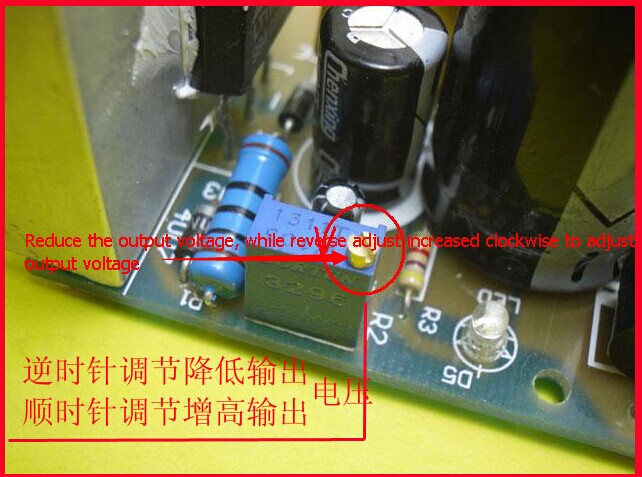

2. By adjusting W502 potentiometer, can adjust LT1083 output voltage
3. 7A self recovery fuse, can prevent the output of the circuit is too large, with output protection function
B. Instructions

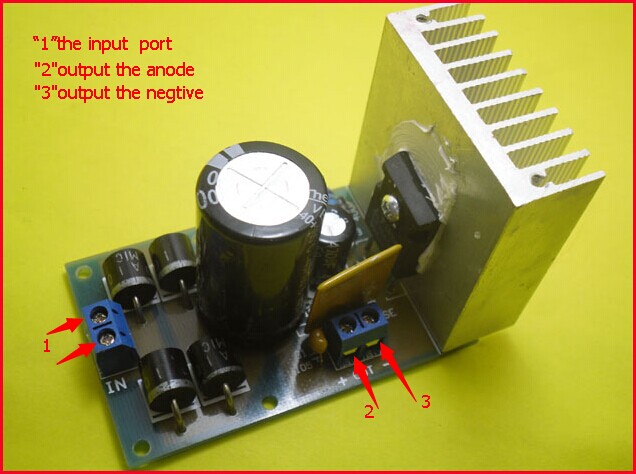

1.The wiring diagram and function description
2.Electrical characteristics

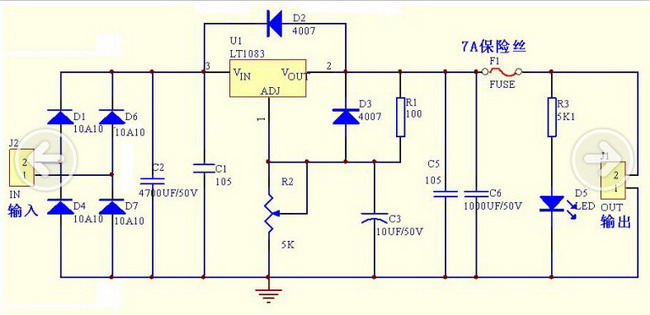

C. Principle diagram
