DIY FM Microphone Radio Transmitter Kit (11840)

Name: DIY FM Microphone Radio Transmitter Kit (11840)
SKU: 13785
Price: 5.99 USD
Availability: InStock
Rating: 2.50 (1 reviews)

(1 Review)

DIY Soldering Projects, FM Radio Transmitter Kit, bulk discount can be offered for bulk orders. Feel free to contact us.

Sold By ICStation

DIY FM Microphone Radio Transmitter Kit (11840) 1

DIY FM Microphone Radio Transmitter Kit (11840) 2

DIY FM Microphone Radio Transmitter Kit (11840) 3

DIY FM Microphone Radio Transmitter Kit (11840) 4

DIY FM Microphone Radio Transmitter Kit (11840) 5

DIY FM Microphone Radio Transmitter Kit (11840) 6

2018-08-08T05:46:18.124Z-DIY FM Wireless Microphone.11840_1.jpg

2018-08-08T05:46:18.124Z-DIY FM Wireless Microphone.11840_2.jpg

2018-08-08T05:46:18.124Z-DIY FM Wireless Microphone.11840_3.jpg

2018-08-08T05:46:18.124Z-DIY FM Wireless Microphone.11840_5.jpg

2018-08-08T05:46:18.124Z-DIY FM Wireless Microphone.11840_4.jpg

2018-08-08T05:46:18.124Z-DIY FM Wireless Microphone.11840_6.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

DIY Soldering Projects, FM Radio Transmitter Kit, bulk discount can be offered for bulk orders. Feel free to contact us.

Product Specifications: Board Size: 50x30mm (L*W) Operating Voltage: 1.5-9V Operating Current: 3.3mA-29mA Operating Frequency: 85-115MHz Receiving Device: FM radio, cellphone with FM radio function …

Product Specifications:

Board Size: 50x30mm (L*W)
Operating Voltage: 1.5-9V
Operating Current: 3.3mA-29mA
Operating Frequency: 85-115MHz
Receiving Device: FM radio, cellphone with FM radio function
Audio Response: 20Hz-15KHz
Radio Frequency Power: -2dBm~15dBm
Radio Frequency Output Impedance: 50 ohm
Second Harmonic: >=-40dB
Transmitting Distance: 100-1000m

Features:

Wide operating voltage range;
Low power consumption;
DIY design.
Low-power FM radio station, TV audio wireless forwarding and high-sensitivity wireless device use

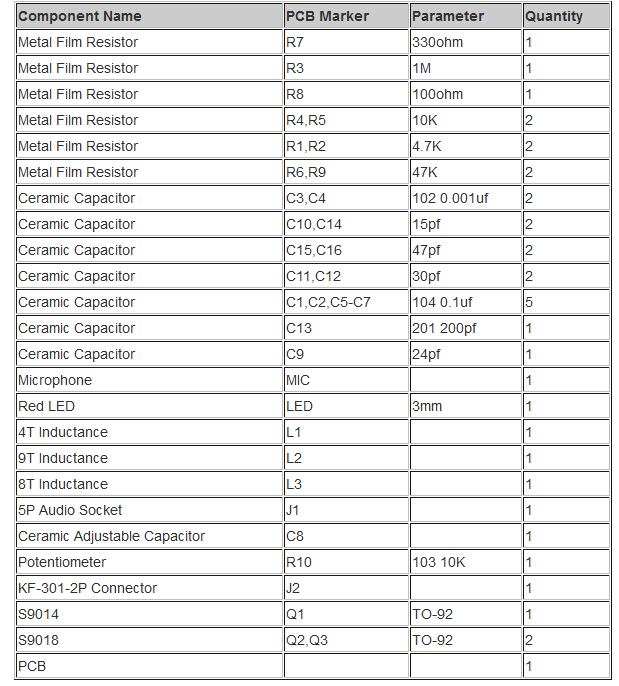

Packing List:

NOTE: According to PCB silk screen and components list, complete the installation.

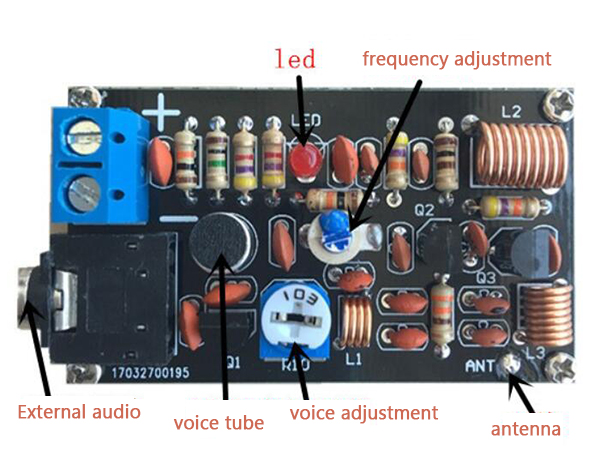

Board Information:

Diagram:

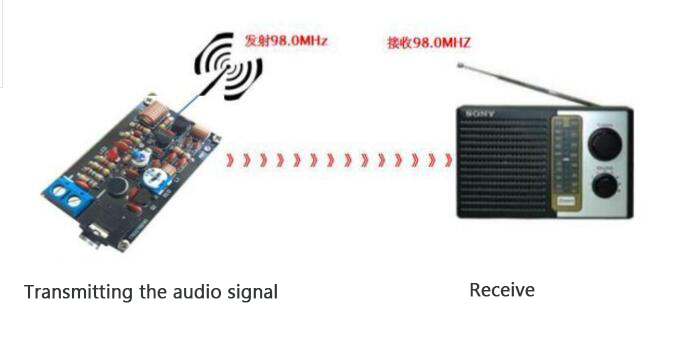

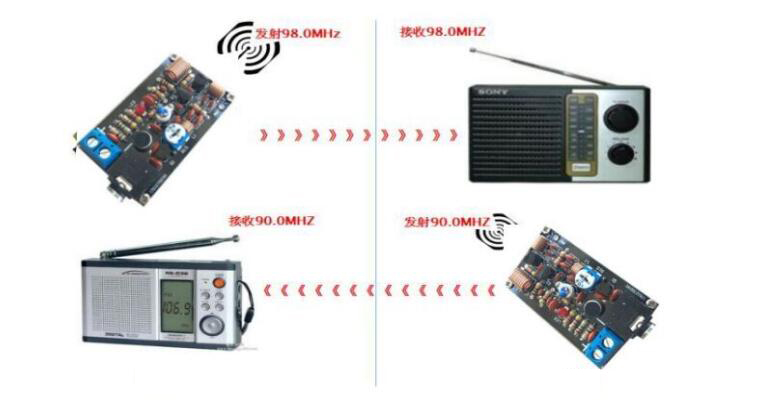

Application:

Tested by ICStation's Outstanding Partner Editronikx:

No country selected, please select your country to see shipping options.

Change Destination Country:

Quantity	Price
1-5	$5.99
6-10	$5.49
11-20	$5.19
21+	$4.99

Review Breakdown

Average Ratings

Product: (1.00)

Documentation: (4.00)

Shipping: (4.00)

Communication: (1.00)

Cedric | June 12, 2021

Missing Parts - No repsonse from Seller

Bought this DIY Kit and was suprised by the fast shipping. Excited to build it. Soldered some parts till i realised there are missing alot capacitors and some resistors. Could not finish. Wrote the Seller but did not get any response. Hope they will read this and contacts me.

Response from ICStation | July 30, 2021

Hi Cedric,
Sorry for the late update.
We have shipped a new replacement to you recently.
It is on the way. The ETA is around Aug 15th.
Thank you for your patience.
Have a nice weekend!
