Intermidate to Advanced Kits, DIY Colorful LED Tower Display with Infrared Remote Control, Challenge soldering projects
Sold By ICStation
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Note! Download the installation instructions from the Documents. Main picture is for your referance, and we only sell the colorful Tower kit. If you need the pure colored ones, plz contact icstation.…
Read More…Note! Download the installation instructions from the Documents.
Main picture is for your referance, and we only sell the colorful Tower kit. If you need the pure colored ones, plz contact icstation.

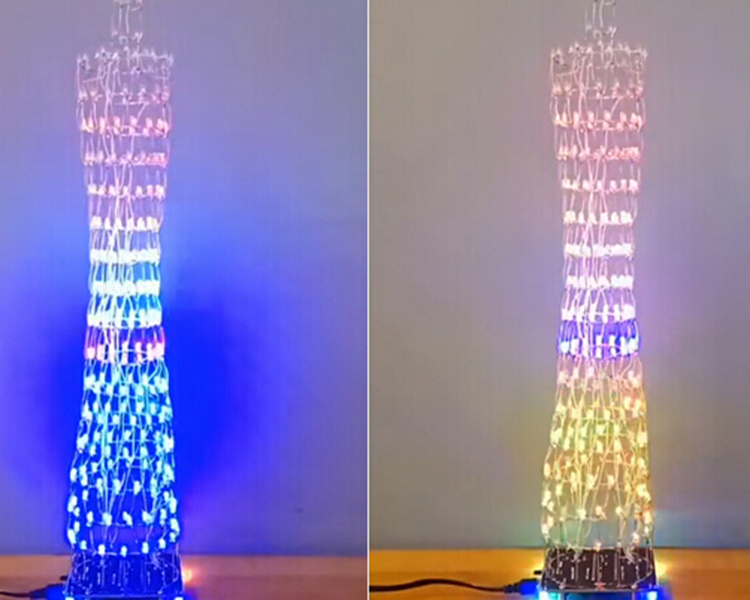

LED Tower is imitated from Guangzhou Tower. Guangzhou Tower, also known as Guangzhou new TV tower, nickname Xiaoman Yao. It is the tallest building in Guangzhou, the design of the tower is very characteristic, especially in the night under the lighting decoration, it is beautiful. We use STC12C5A60S2 as a control system, the display part is 16*16 dot matrix display, through the production of the Guangzhou Tower, can better enhance the microcontroller on the principle of dot matrix display.
PCB size:78*78mm
Tower size:9078450mm(Different people installed, the height will be slightly different)
Power:DC 5V
Installation method: DIY Soldering assembly
Light Color: Colorful
16 * 16 led lattice design
A variety of modes can be freely converted:
Offline animation mode(More than a dozen)
Music spectrum mode(Flash with music)
Plug-in components used to make high success rate
Give some code(The default code inside the chip, the function is more abundant, so please do not update the code inside arbitrarily)
USB power audio line
Home Furnishing decoration
Store decoration
Graduation design
Practice for electronic enthusiasts
Holiday gifts
NO. | Component Name | PCB Marker | Parameter | QTY | Remarks |
---|---|---|---|---|---|
1 | STC12C5A60S2 | DIP-40 | 1 | ||
2 | IC Socket | U7 | DIP-40 | 1 | |
3 | Metal film resistor | R1-R4,R6-R21 | 300ohm | 20 | |
4 | Metal film resistor | R5 | 100K | 1 | |
5 | Metal film resistor | R22 | 10K | 1 | |
6 | Ceramic capacitors | C1,C2,C5 | 30P | 3 | |
7 | 5mm LED | D1-D4 | Colorful | 4 | |
8 | Crystal | Y1 | 11.0592MHz | 1 | |
9 | Mini USB | P1 | 1 | ||
10 | Round Pin | J1-J16 | 16P | 1 | |
11 | Infrared sensor | JS | VS1838B | 1 | |
12 | Self-locking switch | S | 1 | ||
13 | Button | S1 | 1 | ||
14 | Male Pin | X | 4P | 1 | |
15 | 3mm LED | Colorful | 271 | ||
16 | USB/Audio Cable | 45mm | 1 | ||
17 | Copper pillars | M3*10 | 4 | ||
18 | Screw | M3*6 | 4 | ||
19 | USB-TTL Downloader | 1 | |||
20 | DuPont line | 20mm | 5 | ||
21 | Remote control | 1 | Include CR2025 battery | ||
24 | Cable | 4.2m | 1 | ||
25 | PCB | 78*78 | 1 | ||
26 | Acrylic welding template | 90*90mm | 1 |
