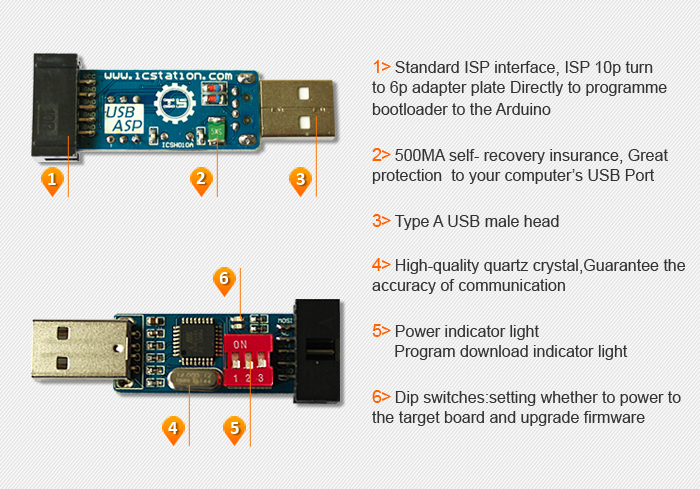

Features

1. Support USB1.1 or USB2.0 communication;
2. Support WIN98, WINME, WIN2000 WINXP, VISTA, Windows 7 32-bit and 64 - bit operating system;
3. Use the USB port power supply, inner plate with 500 ma self recovery fuse, protect the computer motherboard was accidentally burned;
4. The chip program can be used when the target system itself, power supply, can also use the programmer from the USB port Electricity supply target board, but should guarantee the goal not greater than the current 500 ma, lest cannot normal programming;
5. Programming does not affect the target plate program is run (in system programming);
6. Can block Flash and EEPROM, fuse, read and write operations;
7. Use Atmel company recommended standard IDC10PIN interface; Sealed packaging, finished product packaging using electrostatic bag to ensure the quality of board is not broken before use;
8. Send your ISP 10p mouth mouth turn 6p transfer plate and 10p line programming;

Parameters

1). The USB interface: type A USB male head

2). The programming interface: standard ISP_10P interface, ISP 10p turn 6p adapter plate

3). Product size: 17 * 60mm

4). Mounting holes: no
