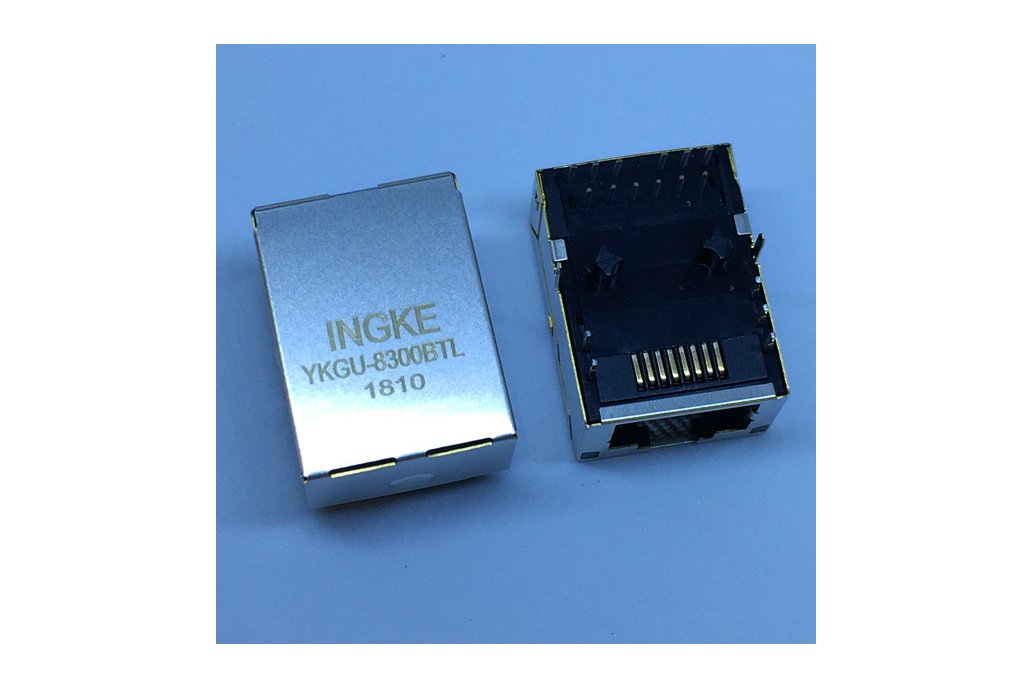

Ingke YKGU-8300BTL 100% cross J0G-0003NL 1 Port Magnetic Modular RJ45 Jacks

• Part Number: J0G-0003NL
• Made in China: YKGU-8300BTL
• Original Manufacturer: Ingke Technology
• Supply Ability: 5500K-PCS/Month
• Product Category: Modular Connectors / Ethernet Connectors
• Packaging: Tray
• Connector Type: RJ45
• Number of Ports: 1
• Number of Rows: 1
• Applications: 10/100/1000 Base-T, AutoMDIX
• Mounting Type: Through Hole
• Orientation: 90° Angle (Right)
• Termination: Solder
• LED Color: Green, Orange - Yellow
• Number of Cores per Jack: 8
• Shielding: Shielded
• Features: Board Guide
• Tab Direction: Up
• Contact Material: Phosphor Bronze
• Contact Finish: Gold
• Operating Temperature: -40℃~85℃
• Flammability Rating: UL 94 V-0
• Contact Finish Thickness: 30µin (0.76µm)
• Shield Material: Copper Alloy
• Housing Material: Thermoplastic
• Manufacturer: Ingke Technology Co.,Ltd

Our service:

• Free sample is available!
• OEM & ODM orders are welcomed.
• We offer after-sale service for 8 years.

Our Advantage:

• OEM factory for Connector more than 10 years.
• Cost reduction, lead time within 1 week, FREE samples.
• After sales services 24*7 to help you solve any kind of problems
• Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
• Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models:

J3006G21D J3018G21K J3026G21D J8064D649P J8064E62 J8064E64 J8064E66 J8064E68 JK0-0026 JP006821U JP011821U JP026821U JV006I21 JV026I21 J0C-0003NL JK0-0018NL JK0-0026NL JG0-0045NL JK0-0014NL JK0-0016NL JK0-0017NL JK0-0020NL JK0-0025NL JC0-0063NL JX20-0116NL JC0-0132NL J20-0116NL JC0-3022NL JC0-0319NL JC0-0133NL J0B-3448NL J00-0065 J0011D21 J0026D21B JG0-0051NL JC0-0019NL JK0-0044NL JK0-0036NL J0B-0368NL J0B-0386NL JC0-0131NL JX20-0115NL J0B-0366NL J20-0115NL J0026D01 J1012F21C J8064D628A J8064D648A J8064D668A J20-0013 J20-0014 JG0-0032 JK0-0014 JK0-0016 JK0-0017 JG0-0023 JG0-0025 JC0-0031 JC0-0032 JC0-0033 JW0-0009 J00-0025 J00-0045 J0026D01B J0026D01F J0026D21E J0026D21F J0026D21G J0033D21 J0035D21B J0048D21M J0073D01B J0C-0004 J0C-0006 J1006F01P J1006F21 J1012F01C J1012F21K J1012F21L J1012F21R J1026F01P J20-0017 J20-0019 J2039H3B J2039H3C J2042H3C
