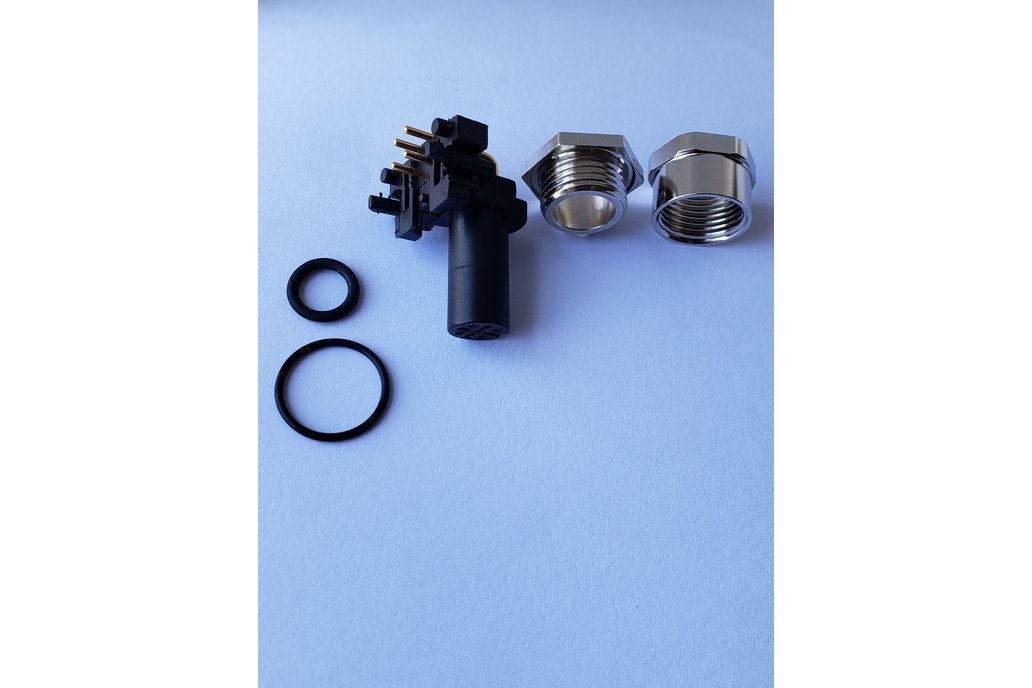

- INGKE YKM12-PTB02249A Direct Substitute TE 3-2172079-2 M12 4 Position Circular Connector

• Part Number:3-2172079-2
• Made in China:YKM12-PTB02249A
• Original Manufacturer:Ingke Technology
• Supply Ability:3200K-PCS/Month
• Series:M12
• Connector Type:Receptacle, Female Sockets
• Number of Positions:4
• Shell Size - Insert:M12-4
• Mounting Type:Panel Mount, Through Hole, Right Angle
• Mounting Feature:Bulkhead
• Termination:Solder
• Fastening Type:Threaded
• Orientation:A
• Shell Material:Brass
• Shell Finish:Nickel
• Contact Finish - Mating:Gold
• Ingress Protection:IP68 - Dust Tight, Waterproof
• Features:Board Guide, Board Lock
• Current Rating (Amps):4A
• Voltage Rating:250VAC/DC
• Operating Temperature:-40°C ~ 85°C
• Applications:Automotive, Industrial
• Ingke Technology Mass production of the following models;
• 3-2172091-2 5-2172081-2 5-2172071-2 4-2172083-2
• 5-2172070-2 5-2172078-2 3-2172062-2 6-1437719-6 4-2172072-2 2-2172067-2 3-2172079-2 T4145415021-001 T4145515021-001 T4145015031-001 T4145515051-001 T4145035021-001 T4145535051-001 4-1437719-8 1838891-4 5-1437719-4 5-1437719-7 T4145015021-001 T4145515031-001 T4145415031-001 T4141012121-000 4-2172070-2 4-2271111-2 2120949-1 T4130512041-000 T4145015051-001 T4110012041-000 T4110512041-000 T4145035051-001 2-2172068-2 3-2172081-2 4-2172081-2
