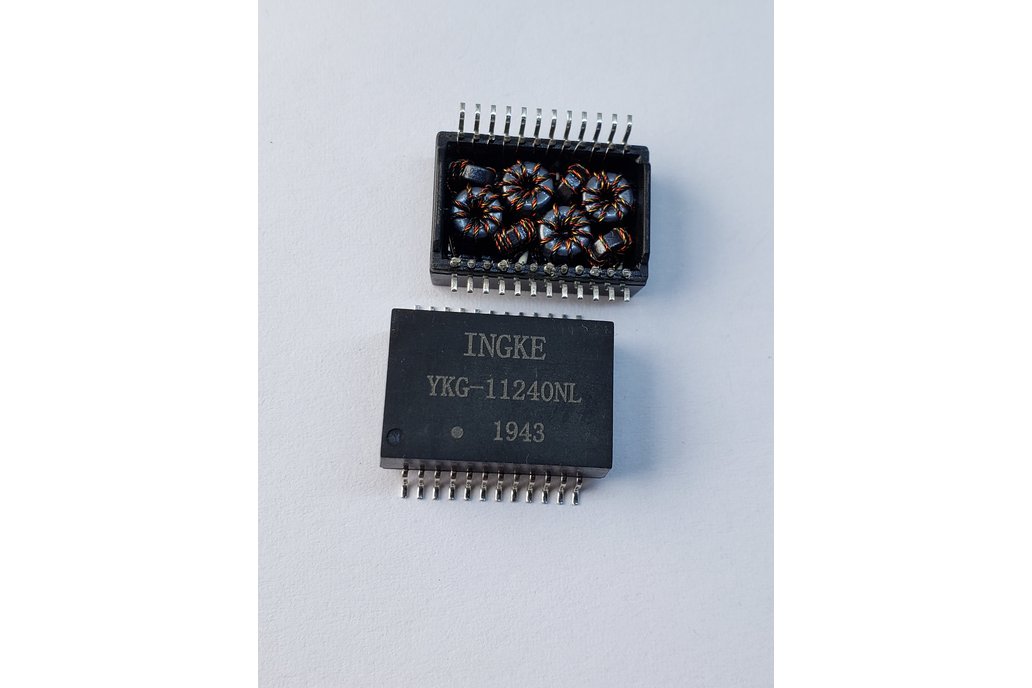

- INGKE YKG-11240NL Direct Substitute WE 749022015 1000 Base -T POE+ Transformer Lan

• Part number:749022015
• Made in China:YKG-11240NL
• Supply Ability:1500K-PCS/Month
• Packaging:Cut Tape (CT)
• Transformer Type:LAN 10/100/1000 Base-T
• Inductance:350µH
• Turns Ratio - Primary:Secondary 1:1
• Mounting Type:Surface Mount
• Size / Dimension:0.720" L x 0.511" W (18.28mm x 12.98mm)
• Height - Seated (Max):0.404" (10.26mm)
• Operating Temperature:-40°C ~ 85°C
• Flammability Rating:UL 94 V-0
• Manufacturer: Ingke Technology Co.,Ltd
• Our service:
• 1).Free sample is available!
• 2).OEM & ODM orders are welcomed.
• 3).We offer after-sale service for 8 years.
• Our Advantage:
• (1).OEM factory for Connector more than 10 years.
• (2).Cost reduction, lead time within 1 week, FREE samples.
• (3).After sales services 24*7 to help you solve any kind of problems
• (4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
• (5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
• Ingke Technology Mass production of the following models;

• 749013011 7490100110A 749013011A 7490100111A 7490100111 749010110 7490220120 749022011 7490220121 749020011A 7490220122 749014012 749024012 7490120110 749020100A 749020010A 749023010A 749022015 7490200136 749053013 749050010U 749050017 749010012A 749010013 749020111A
