REDBit ONE PCB

Name: REDBit ONE PCB
SKU: 6084
Price: 3.00 USD
Availability: Discontinued

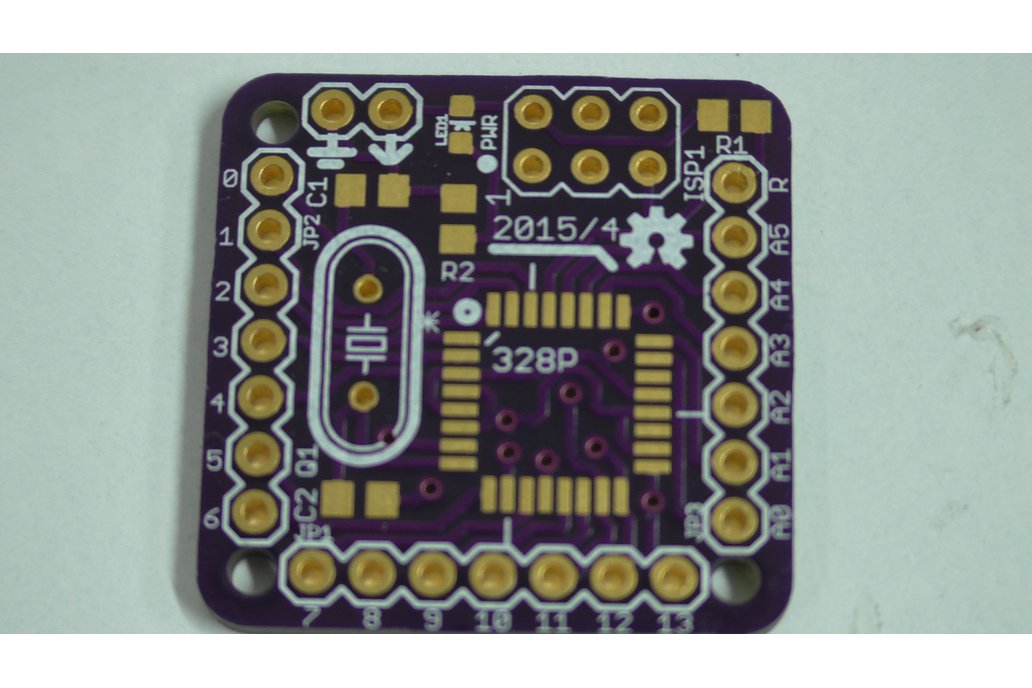

REDBit ONE (PCB only)

Designed by Red Smoke Electronics in United Kingdom

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From Prototyping & Fabrication

PMW3389 Motion Sensor

Joe's Sensors and Sundry

$29.99

e.Dispenser - For solder paste, adhesives and more

Dan M

$159.00

PMW3360 Motion Sensor

Joe's Sensors and Sundry

$29.40

14-Pin JTAG to 10-Pin SWD Adapter

Ratsnest Designs

$3.00

Welcome To RedSmoke Electronics

REDBit ONE (PCB only)

PCB only of the REDbit One dev board https://www.tindie.com/products/LukeJA/redbit-one/ from the above link: The Heart of your next Micro Project! Tiny but powerful - just add a battery! NOTICE-I am …

PCB only of the REDbit One dev board https://www.tindie.com/products/LukeJA/redbit-one/ from the above link:

The Heart of your next Micro Project! Tiny but powerful - just add a battery!

NOTICE-I am currently waiting on some improved PCB's. shown above is the older PCB however any orders will receive the newer improved PCB shown in the pinout diagram. They are identical minus the moved R1 and improved silkscreen. Unfortunately in the new pcb silkscreen SCL is in a slightly off position

Designed to be squeezed into the tiniest of projects where space is key, but as powerful as an Arduino(TM) UNO running on the same chip. At heart its an Atmega328p-AU breakout board with 0.1" spacing, the most basic support circuitry and an isp port for programming. This allows it to be hackable and to adapt, power it with any voltage from 2.7-5.5V! it will (probably) survive and keep going! change the fuse bits! mess with the clock! then stuff it into a tiny enclosure and watch it drive your tiny robot!
