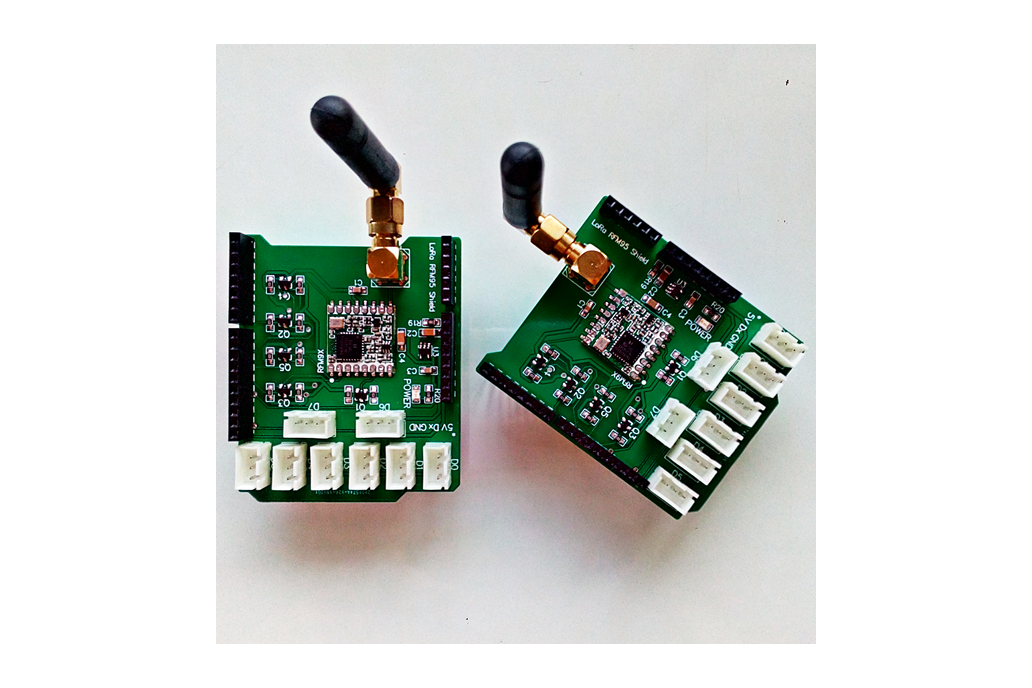

The RFM95 LoRa Shield is an Arduino Shield for the LoRa radio RFM95W. It comes with 1 antenna connectors (868/915MHz) and Grove Base Shield. This shield will provide your Arduino with Long Range communication capability.

The RFM95 transceivers feature the LoRa™ long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. RF Connector, SMA Right Angle PCB Jack, Through Hole, 50 Ohm, Reverse Polarized

The bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time.

There are intotal 8 grove connectors on the RFM95 LoRa Aduino Shield, here we use a table to show the details.

Features:

• Dimensions: 53mm x 64mm
• Integrated LDO 3.3V up to 500mA
• Works directly with any Arduino regardless of the working voltage (5V/3,3V)
• Integrated LoRa modem RFM95W(868/915MHz)
• Has a Grove Base Shield
• PD0-PD7 (Arduino digital 0 - 7) pins are available for connection

Items included:

• RFM95 LoRa Arduino Shield
• SMA Right Angle Male Antenna
