TPS63001 Buck/Boost 3.3V Output - Breakout Board

Name: TPS63001 Buck/Boost 3.3V Output - Breakout Board
SKU: 7317
Price: 10.00 USD
Availability: Discontinued

A breakout board for the Texas Instruments IC Buck/Boost Regulator TPS63001. With this board you can get a regulated voltage of 3.3V.

Designed by PlantBoss in Israel

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From Prototyping & Fabrication

PMW3389 Motion Sensor

Joe's Sensors and Sundry

$29.99

PMW3360 Motion Sensor

Joe's Sensors and Sundry

$29.40

Sale

Flipper Zero RGB Mod

Midwest Gadgets LLC

$12.75 $15.00

FPGA Mezzanine Card (FMC) LPC Pin Header Board

I A M Electronic

$235.00

TPS63001 Buck/Boost 3.3V Output - Breakout Board 1

TPS63001 Buck/Boost 3.3V Output - Breakout Board 2

TPS63001 Buck/Boost 3.3V Output - Breakout Board 3

2016-05-14T14:39:26.592Z-2016-05-14 18.11.26 - small.jpg

2016-05-14T18:46:29.120Z-2016-05-14 18.11.18 - small.jpg

2016-05-14T18:46:29.120Z-2016-05-14 18.11.41 - small.jpg

Smart electronic solutions for the craving mind

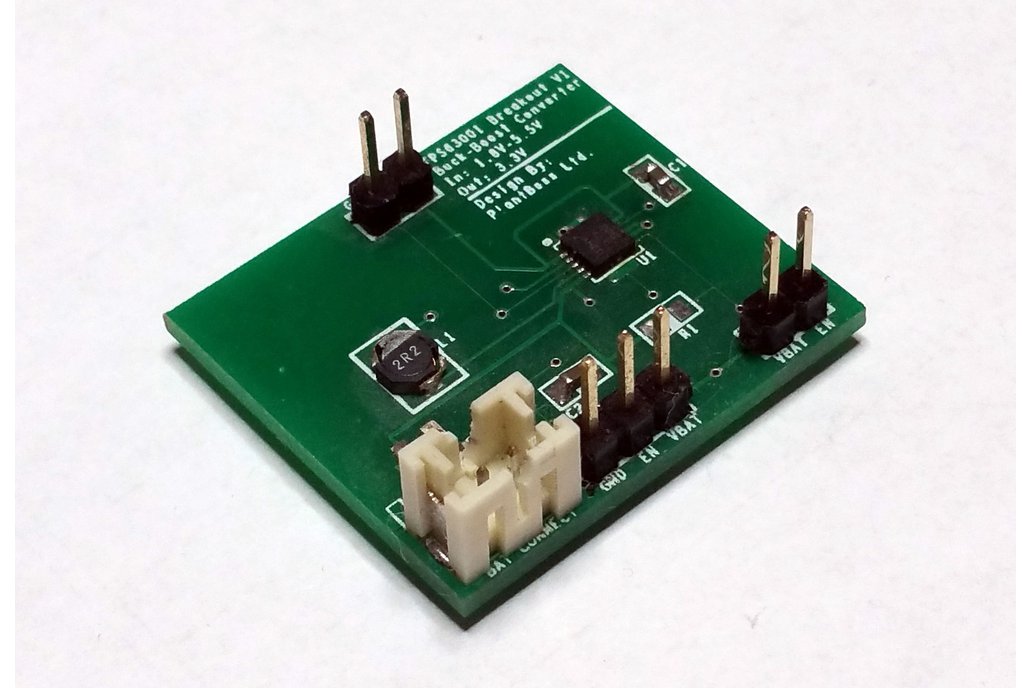

A breakout board for the Texas Instruments IC Buck/Boost Regulator TPS63001. With this board you can get a regulated voltage of 3.3V.

We made it for those who want to easily create a regulated voltage of 3.3V using a range of input voltage from 1.8V to 5.5V. Compared to other buck/boost converters, the current output it can support it relatively high and can reach 1.6A with a 5.5V supply. In addition, the TPS63001 is of QFN type and it pretty tricky to solder by yourself unless you have the right tools and experience. With this breakout board you are good to go with no need to waste your time with unnecessary soldering.

No such breakout board exists for this popular component except for the TI EVM which you can get for $49 on their store. This makes the board unique and very affordable.

Additional information:

Dimensions of breakout board: 29mm X 26mm

Vout = 3.3V:

500mA-800mA minimum output in boost mode (1.8V < Vin < 2.4V)
800mA-1200mA minimum outpout in boost mode (2.4 < Vin < 3.6V)
1200mA-1600mA minimum output in buck mode (3.6 < Vin < 5.5V)

Jumper wires could be connected to the pin headers for input and output signals.

In addition, in case jumper wires are not enough for you, there is a female connector from JST (P/N: B2B-PH-SM4-TB(LF)(SN)) which allows for a stronger and more secure connection for the input. The matching male connector which you would need in that case is also from JST (P/N: PHR-2).
