Chainable Color LED Matrix 5x7 (WS2812)

Name: Chainable Color LED Matrix 5x7 (WS2812)
SKU: 1939
Price: 14.50 USD
Availability: Discontinued

Chainable Color LED Matrix 5x7 (35 WS2812 LEDs on a matrix)

Designed by Rayshobby LLC in United States of America

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From Rayshobby LLC:

OpenSprinkler: Internet-based Sprinkler Controller

Rayshobby LLC

$150.00

OpenSprinkler Pi (OSPi) v2.0

Rayshobby LLC

$70.00

OpenGarage -- ESP8266-based Garage Door Opener

Rayshobby LLC

$50.00

ESPToy WiFi dev. board (v2.0)

Rayshobby LLC

$12.99

More From Lights

Frigidaire Microwave LED Light Board Warm 2700K

Bober Electronics

$25.00

A1-SLWF-03 WLED ESP32 Controller Home Assistant

SMARTLIGHT.ME

$15.99

Logic-Level Converter (Level Shifter)

sjm electronics

$12.00

StageFighter : RGB Pixel Controller

ONONO

$90.00

Chainable Color LED Matrix 5x7 (WS2812) 1

Chainable Color LED Matrix 5x7 (WS2812) 2

Chainable Color LED Matrix 5x7 (WS2812) 3

Chainable Color LED Matrix 5x7 (WS2812) 4

Chainable Color LED Matrix 5x7 (WS2812) 5

Chainable Color LED Matrix 5x7 (WS2812) 6






Chainable Color LED Matrix 5x7 (35 WS2812 LEDs on a matrix)

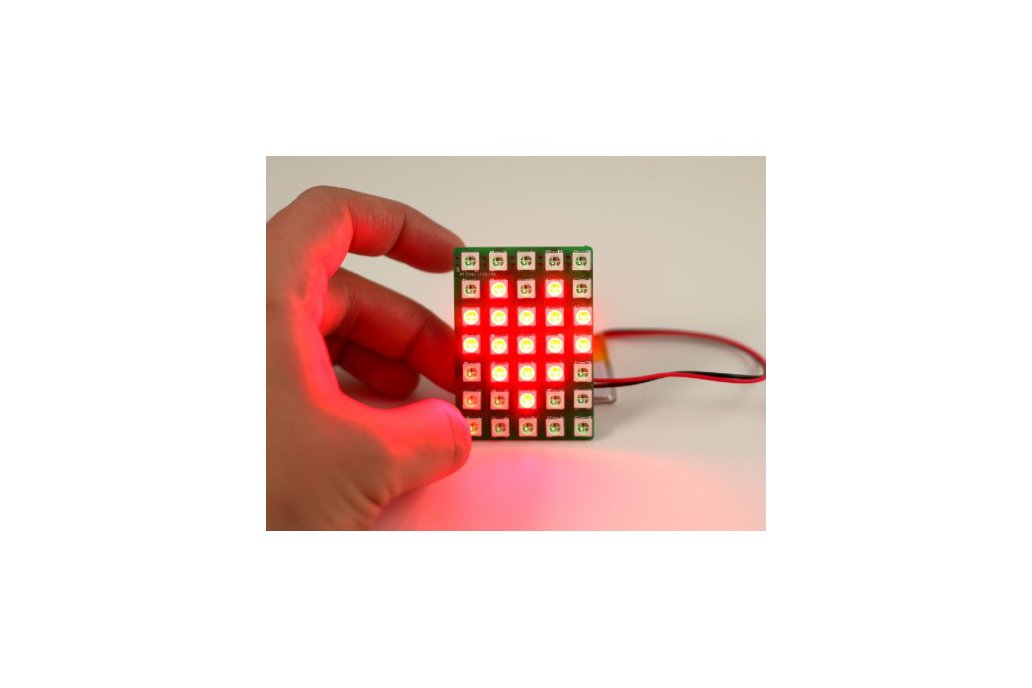

Chainable color LED matrix consisting of 35 LEDs arranged on a 5x7 grid. The matrix takes only one digital pin and all LEDs are individually addressable. This resolution matches the standard ASCII character font, so you can use it to display letters and words, or make a cute icon. The LED matrix works with any Arduino compatible board (including SquareWear 2.0 and SquareWear Mini) using Adafruit's NeoPixel library. The SquareWear software package includes several LED Matrix demos.

The package includes one LED matrix and four pairs of sew-on snaps (6mm).

The matrix has input three pins mapped out at the back of the board: VCC (operating voltage, 3V to 5V), DATA_IN, and GND. The locations of these pins exactly match the VCC, D10, and GND pins on SquareWear Mini. The matrix is chainable: you can connect together several of them to make a larger display panel. Technically, each LED has a built-in chip similar to a shift register. It works by pushing bits from a microcontroller pin to the string of LEDs at sufficient speed (800kHz). Every 24 bits (or 3 bytes) correspond to the RGB color of an individual LED. For details, please refer to the NeoPixel Guide.

LED Matrix Instructions Download as PDF
