What is it?

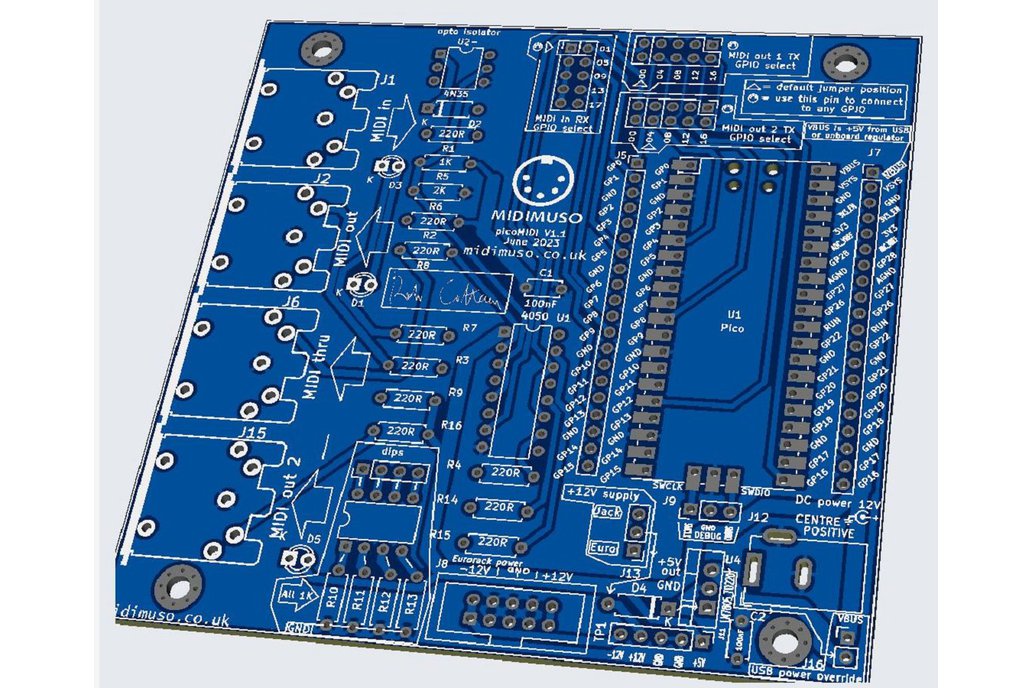

Just the bare PCB

Why did you make it?

I needed it

What makes it special?

Use your own components. You'll need to buy: Resistors: (all L6.3mm D2.5mm P7.62mm ) 10 x 220R (R1, R2,R3, R4, R14, R7, R8, R9, R15, R16) 5 x 1K (R5, R10 - R13) 1 x 2K (R6)

Capacitors: 2 x 100nF (C1, C2) (Disc ceramic D4.7mm W2.5mm P5.00mm)

Diodes: 2 x 1N4007 or similar (D2, D4) (P7.62mm)

LEDs: 3 x Kingbright L-113SRDT or similar 20mA (LED3mm)

ICs: 1 x Opto isolator 4N35 1 x Hex buffer CD4050

Regulator: 1 x LM7805 in TO220 package

4 x MIDI DIN5 180 degrees socket

1 x 4 way DIP switch Width 7.62mm

Headers: (all pitch 2.54mm Vertical) 1 x male header (1 x 2) 2 x male header (1 x 3) 1 x male header (1 x 4) 2 x male header (1 x 20) 2 x female header (1 x 20) 1 x female header (1 x 3) 3 x  male header (2 x 5) 2 x 5-way Eurorack Power IDC header 5 x 0.1" jumpers

DIL sockets: 1 x 6 way W7.62mm 1 x 16 way W7.62mm

1 x DC power Barrel Jack DCJ200
