Mini Surface mount ATmega1284P-AU Breakout Low amp

Name: Mini Surface mount ATmega1284P-AU Breakout Low amp
SKU: 6478
Price: 22.00 USD
Availability: OutOfStock
Rating: 5.00 (1 reviews)

(1 Review)

Try out the surface mount Atmega1284p-au micro with 2 UARTS, 8 analog pins, 32 I/O pins, 6 pwm pins Fully built

Designed by scrolled in United Kingdom

Mini Surface mount ATmega1284P-AU Breakout Low amp 1

Mini Surface mount ATmega1284P-AU Breakout Low amp 2

Mini Surface mount ATmega1284P-AU Breakout Low amp 3

2016-01-03T11:31:27.221Z-ATMEGA1284-P-AU-SMD-BREAKOUT PINS.jpg

$22.00

Out of Stock

Sold out since Feb 20, 2021

All orders will be served in as timely a manner as possible.

Try out the surface mount Atmega1284p-au micro with 2 UARTS, 8 analog pins, 32 I/O pins, 6 pwm pins Fully built

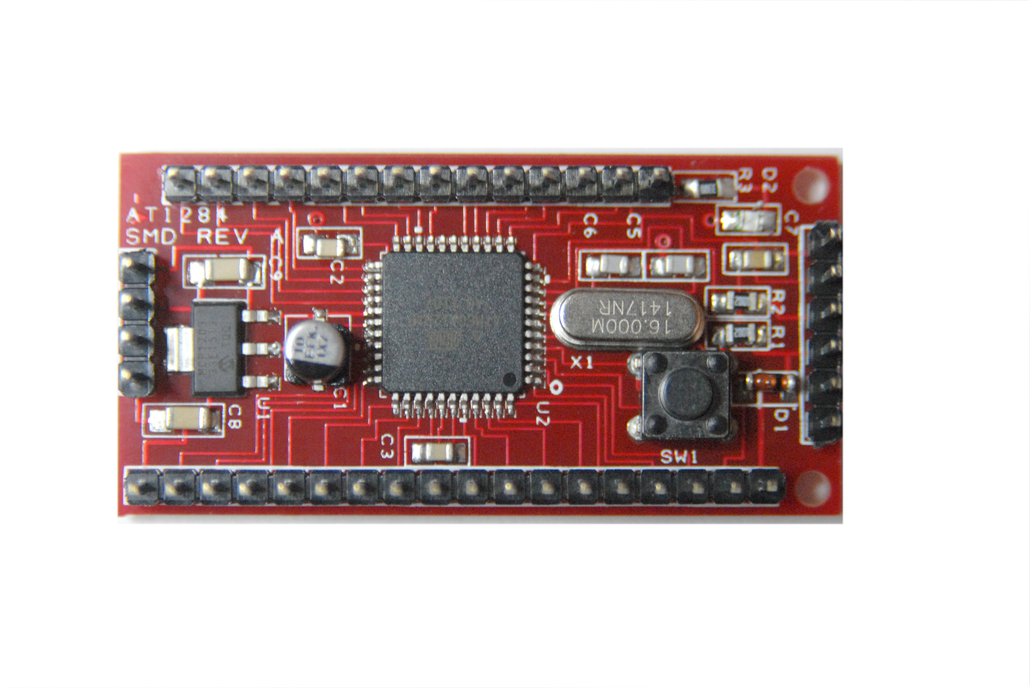

Fully built mini breakout board (Very low current) using the 44pin TQFP Atmega1284-p-au. This is truly bare bones, 7 capacitors, 2 resistors, 1 diode, 1 16mHz crystal, reset switch, headers, AT1284P (P-AU) chip and 3.3v regulator. The chip will be bootloaded with optiboot and tested with blink loaded which operates test led on D10. USB connection needs to be made via an FTDI lead to the six pin header on the board. Board size is 50.8mm x 25.4mm, (2" x 1") the board is lead free through hole plated, red solder mask, hot air levelled and the majority of pins brought out to headers. Check the board in the photos. There are 2 pairs of VCC and ground pins on headers for you to connect your power supply to or a single 3.3v in pin if you want to use the regulator. The beauty of these chips is that they have 2 UART serial connections so communictaion to and from various devices becomes easier. Full Arduino IDE setup will be supplied as instructional leaflets on purchase. This board has been tested on Arduino IDE 1.01 & 1.6.5 and in the documents I will explain how to load the board data for both IDE versions. The board will be supplied complete and fully tested. Check out my DIP 40 package kits elsewhere on Tindie.
