Serial WiFi Shield for Arduino UNO R3 2560

Name: Serial WiFi Shield for Arduino UNO R3 2560
SKU: 8925
Price: 8.53 USD
Availability: OutOfStock

Serial WiFi Shield for Arduino UNO R3 2560 from ESP8266 WiFi Web Sever Shield ESP-13 IoT DIY Development Board Kit

Sold By Smaring

Serial WiFi Shield for Arduino UNO R3 2560 1

Serial WiFi Shield for Arduino UNO R3 2560 2

Serial WiFi Shield for Arduino UNO R3 2560 3

2017-05-14T00:40:52.929Z-wifishield (2).jpg

2017-05-14T00:40:52.929Z-wifishield (1).jpg

2017-05-14T00:40:52.929Z-wifishield (4).jpg

$8.53

Out of Stock

Welcome to My Store on Smart Hardwares---Smaring

Serial WiFi Shield for Arduino UNO R3 2560 from ESP8266 WiFi Web Sever Shield ESP-13 IoT DIY Development Board Kit

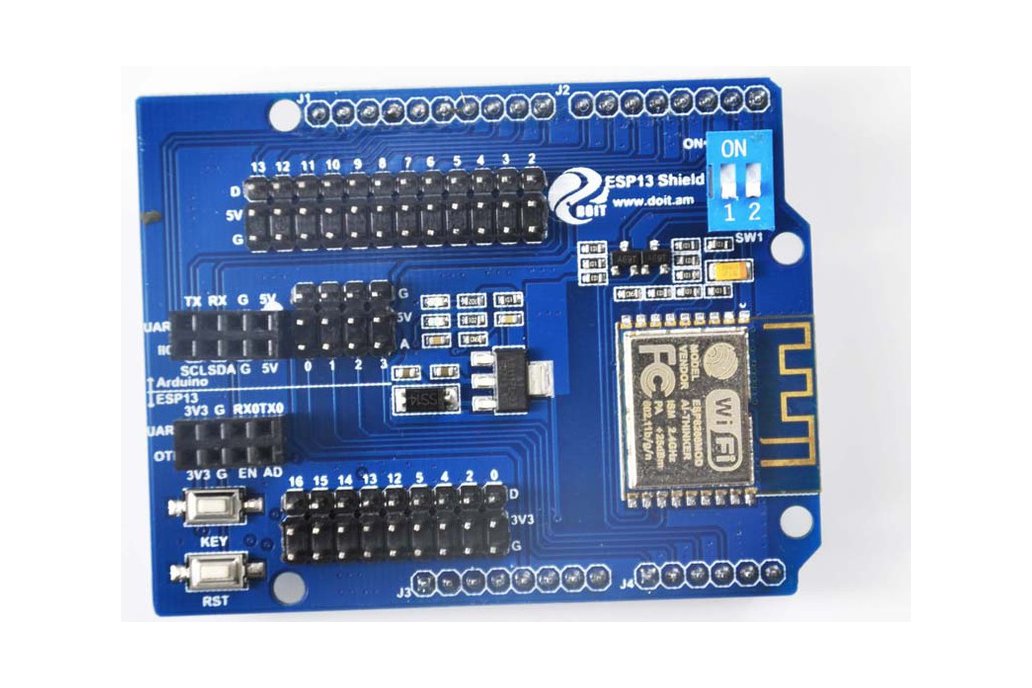

Introduction ESP8266-Based Serial WiFi Shield for Arduino is designed and developed by Shenzhen Doctors of Intelligence & Technology (SZDOIT). The shield is designed based on esp8266 by Espressif Sys…

Introduction

ESP8266-Based Serial WiFi Shield for Arduino is designed and developed by Shenzhen Doctors of Intelligence & Technology (SZDOIT). The shield is designed based on esp8266 by Espressif Systems, pin-compatible with Arduino UNO/Mega2560 DevBorad.

Web Sever Configure Mode

WiFi module is industrial-grade chips ESP8266, which is ESP-12E with metal shield, strong anti-interference ability.
Shield is pin-compatible with Arduino Uno, Mega2560 and other control board. A voltage converter chip is used to deal with 3.3V (Esp8266) and 5V (Arduino)
Dual DIP switches is used for serial ports so that this module shield can be used alone as an Arduino Uno expansion board, and also be used as ESP8266 expansion board.
Serial data is transported to WiFi device transparently, and vice versa. Arduino program does not need any configuration.
WebServer is developed to configure WiFi parameters and serial port parameters.
The module shield can be used as an independent ESP8266 development board. for instance, downloading the official AT commands firmware, NodeMCU open source firmware can be used.
The module shield also can be used as stand-alone expansion board for Arduino Uno.
For more references about Doit serial WiFi module expansion board, driver board information, please refer to:our bbs.

Parameters

802.11 b / g / n wireless standards
STA / AP modes support
TCP / IP protocol stack, One socket
Supports standard TCP / UDP Server and Client
Supports serial port baud rate configuration:1200/2400/4800/9600/19200/38400/57600/74800/115200 bps
Supports serial data bits: 5/6/7/8 bits
Supports serial parity: none
Supports serial stop bits: 1/2 bit
Pin-compatible with Arduino UNO, Mega
Arduino Pinout 2/3/4/5/6/7/8/9/10/11/12/13
ESP8266 GPIO Pinout 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / UART TX / UART RX;
KEY button: modes configuration
Dual-Ports DIP switches: switching Arduino and ESP8266
WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode:<200ua;< span="">
Serial WiFi transmission rate: 110-460800bps
Temperature: -40degree ~ + 125 degree
Humidity: 10%-90% non-condensing
Weight: about 20g
