GRIS, a throughhole version of the MI GRIDS

Name: GRIS, a throughhole version of the MI GRIDS
SKU: 29610
Price: 42.50 USD
Availability: InStock
Rating: 4.79 (6 reviews)

(6 Reviews)

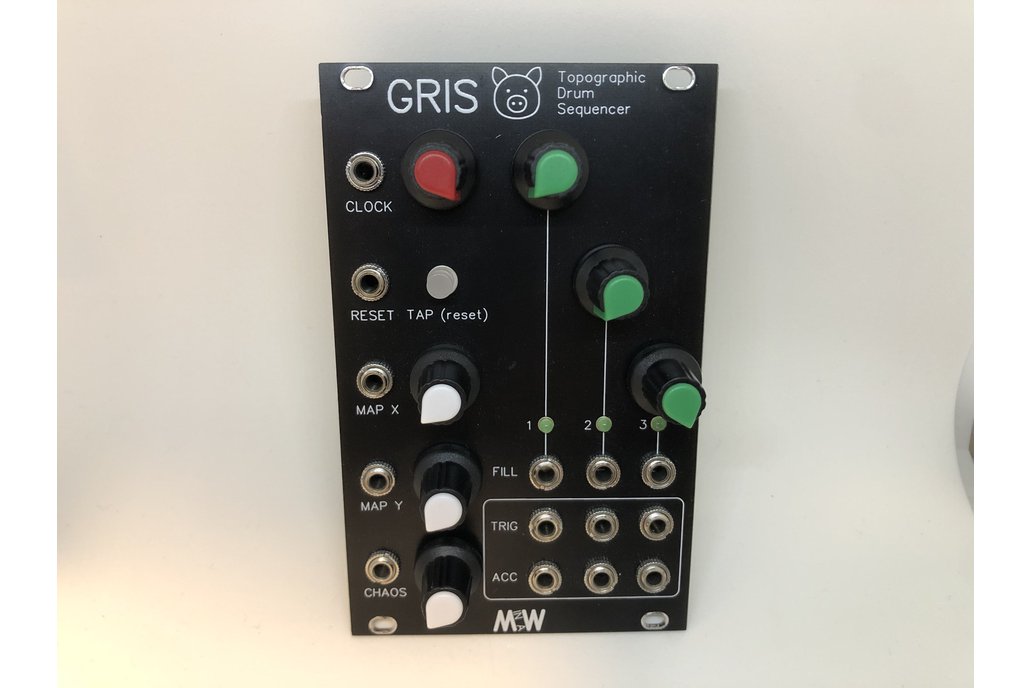

A throughhole, one pcb version of the Mutable Instruments Grids, as close as the original as possible. Using an Arduino Nano as the MCU

Designed by Sourcery Studios in Sweden

GRIS, a throughhole version of the MI GRIDS 1

GRIS, a throughhole version of the MI GRIDS 2

GRIS, a throughhole version of the MI GRIDS 3

GRIS, a throughhole version of the MI GRIDS 4

GRIS, a throughhole version of the MI GRIDS 5

GRIS, a throughhole version of the MI GRIDS 6

GRIS, a throughhole version of the MI GRIDS 7

2023-03-12T20:39:15.738Z-2023-03-11 12.51.14.jpg

2023-03-12T20:39:15.738Z-2023-03-12 17.04.12.jpg

2023-03-12T20:39:15.738Z-2023-03-11 12.51.24.jpg

2023-03-12T20:39:15.738Z-2023-03-11 12.52.25.jpg

2023-03-12T20:39:15.738Z-2023-03-11 12.52.51.jpg

2023-03-12T20:39:15.738Z-2023-03-12 17.06.58.jpg

2023-03-12T20:39:15.738Z-2023-03-12 16.58.10.jpg

$42.50

Quantity*

+ —

PCB, Panels and/or Components*

LED and LED button color*

OpAmp choice*

Knobs or not*

Only 4 left in stock, order now!

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A throughhole, one pcb version of the Mutable Instruments Grids, as close as the original as possible. Using an Arduino Nano as the MCU

NOW with the option of a preprogrammed Arduino with the latest firmware, for those of you who dont feel comfortable programming microcontrollers. Link to project video*: https://youtu.be/PITVIi8tflk …

What is it?

The Gris is the third Mutable Instruments module that I make in the "Modular in a Week" series. This is another "clone" that I have designed. It is as closely resembling the original in both design and parts, except for the fact that it is a through hole variant, using only throughhole components. One change is that instead of a 328 MCU, an Arduino Nano is used, since it has a 328MCU on the board. I also take advantage of the power regulator onboard the Nano to keep the parts count down on the Gris.

Why did you make it?

In my ongoing youtube Series "Modular in a Week" I am working through modules that you can do that is MCU driven. And after doing two STM32 variants of Mutable Instruments modules, I wanted to make the Grids aswell. And this is the result of that.

What makes it special?

Well if you want a fully functional Mutable Instruments Grids, but dont want to pay the huge prices for the original and you dont feel that Surface mount soldering is for you, then this kit could be an affordable way to go.

PLEASE OBSERVE IT IS SOLD WITHOUT THE ARDUINO NANO, WHICH HAVE TO BE SOURCED ELSEWHERE.

Here is one place I have bought Arduino Nanos for around 3$ nowadays

And here you can buy the knobs I use at a much better price for 30 pcs (6colors)

Some changes from things I say in the video is that you should use a MCP6002 or other Rail-to-Rail opamp, you might get a bit less function if you use LM358...

The module is 16HP wide.
