Raspberry Pi GPIO Breakout Board

Raspberry Pi Expanded Breakout board

With a Raspberry Pi® computer it is now possible to develop powerful low cost embedded computer projects.

To fully exploit the Raspberry Pi interface you need the Electro-Resales GPIO Breakout Board.

This breakout board allows you to easily manage the GPIO pins and with the expanded pin breakout (4/pin) and power line, plus 3 mini prototyping areas make it is possible to transfer breadboard ideas to a hard wired prototype in no time.

The PCB is a high quality double sided design with green solder-mask and pads ready to accept your project and solder. Silk screen legend details GPIO pin names and plenty of mounting holes mean this can become a permanent project easily.

See my other sales for compatible cables to attach the breakout board to the Raspberry Pi

Suddenly prototyping with the Raspberry Pi® computer just got very easy.

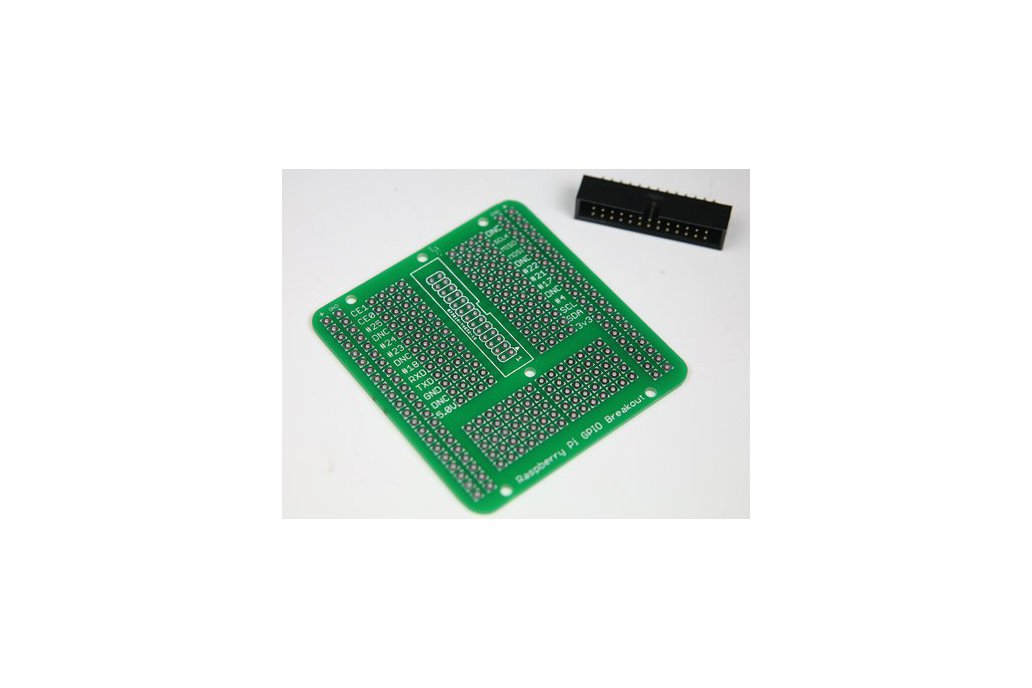

The breakout kit comprises a high quality PCB & 26 pin box IDC header

Some Soldering is needed, to complete the kit, but it is dead easy and our instruction sheet helps you get the board working right first time.

Compatible with both versions 1 and 2 of the Raspberry Pi Computer.

Note:

1. Version 2 computers - GPIO #21 has been replaced with GPIO #27 and that the I2C pins are now I2C port #1 instead of #0. All other pins are the same.

2. Kit comprises;

3. Breakout PCB

4. 26 way male box header
5. Instruction sheet
