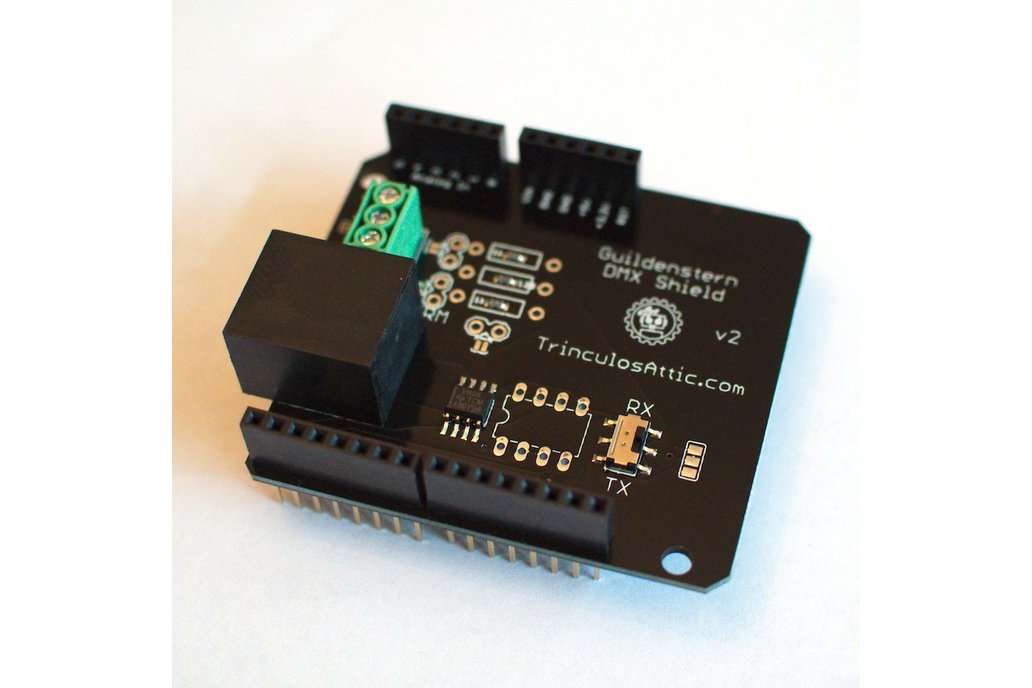

The shield comes in a full-size version, which interfaces with the Arduino Uno and other standard Arduinos, and is compatible with both 3.3v and 5v Arduinos.

Note: the Guildenstern ships with all surface mount parts installed. There are additional footprints on the board for through-hole versions of the surface mount parts. The through hole parts (screw terminal, RJ45, and pass-through headers for the Full-Size) are shipped not installed to allow you to customize as needed.

Download the complete Guildenstern specs here: http://downloads.trinculosattic.com/guildenstern.pdf

Full-Size Details Size: 2.3” x 2.1” x 1”

Connectors:

Pass-through headers for attachment to an Arduino.

(1) 3-position screw terminal

(1) RJ45 modular connector

User Interface:

(3) 2-pin jumpers or solder jumpers to select resistors

(1) RX/TX switch

(2) Solder jumpers

Download a schematic and code examples for the Guildenstern: https://dl.dropbox.com/u/27977799/Arduino-DMX-TA.zip
