What is it?

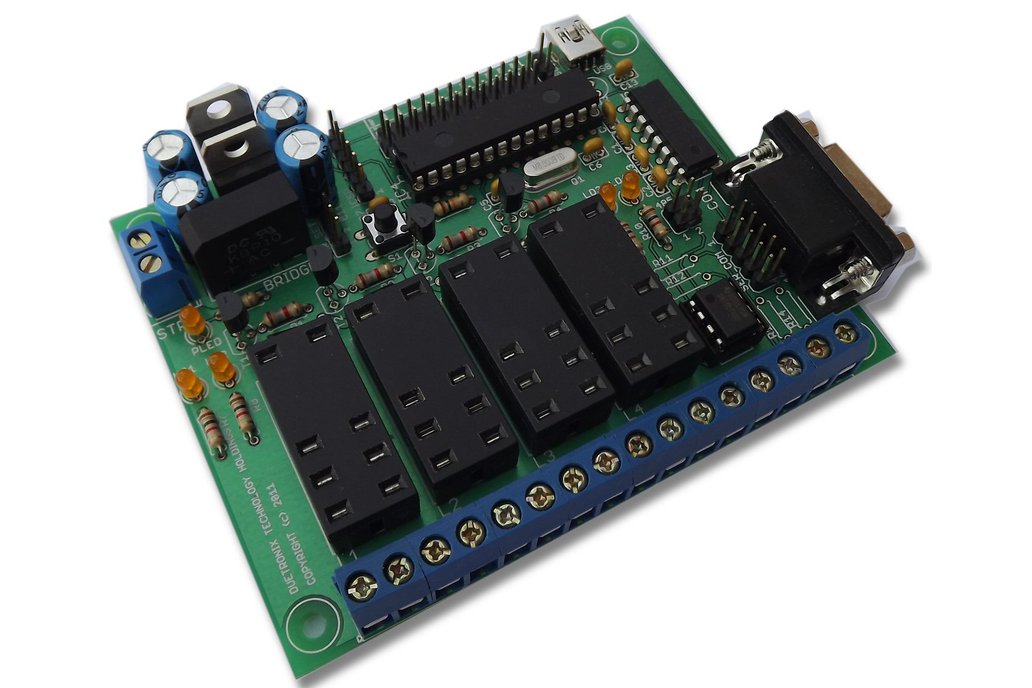

The QUAD Relay Control with PIC Microcontroller, or as it is also a module in the Industria [TEMPERO] range is a four channel control system with integrated PIC monitoring and control. The PIC is equipped with communication interfaces enabling it to integrate with an existing network of device and as a standalone system.

Equipped with 4 industrially rated relays the unit is ideal for more heavy duty applications, but is also ideally suited to small scale applications from domestic applications to light industry.

Unit Features and Specifications (Abbreviated)

Power - AC Powered, - Dual DC Power Supplies 5 VDC | 12 VDC

Communications - Native USB (PIC18F2553) -RS 232 (9 PIN D Type with MAX232) -RS485

I / O - ALL PIC I / O tracked to header - 4 Relays ( Can be switched for higher amperage)

Whats in the box, T's and C's

This device is designed to switch mains voltage, and therefore you should not attempt to use this product if you are not qualified or rated to do so. Regardless of the aforementioned, the user uses the product at their own risk.

Relays and microcontroller are sold separately.
