4 Channel Isolated 16-bit ADC 0-5V Input, USB

Name: 4 Channel Isolated 16-bit ADC 0-5V Input, USB
SKU: 32956
Price: 50.00 USD
Availability: InStock

A programmable voltage measurement unit with 4 galvanically isolated 0-5V inputs.

Designed by A2DElectronics in Canada

4 Channel Isolated 16-bit ADC 0-5V Input, USB 1

4 Channel Isolated 16-bit ADC 0-5V Input, USB 2

4 Channel Isolated 16-bit ADC 0-5V Input, USB 3

4 Channel Isolated 16-bit ADC 0-5V Input, USB 4

4 Channel Isolated 16-bit ADC 0-5V Input, USB 5

4 Channel Isolated 16-bit ADC 0-5V Input, USB 6

4 Channel Isolated 16-bit ADC 0-5V Input, USB 7

4 Channel Isolated 16-bit ADC 0-5V Input, USB 8

4 Channel Isolated 16-bit ADC 0-5V Input, USB 9

4 Channel Isolated 16-bit ADC 0-5V Input, USB 10

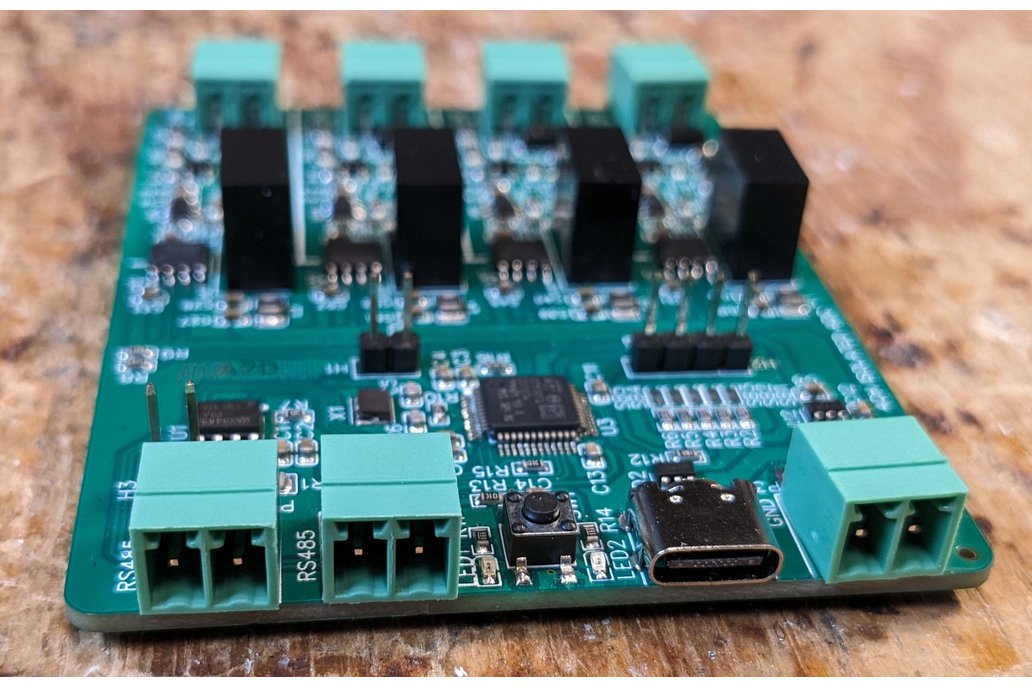

2023-11-20T23:23:23.337Z-A2D Electronics 4CH Isolated ADC Communication Connectors.jpg

2023-11-20T23:23:23.337Z-A2D Electronics 4CH Isolated ADC Channel Connectors.jpg

2023-11-20T23:23:23.337Z-A2D Electronics 4CH Isolated ADC Connectors USBC.jpg

2023-11-20T23:23:23.337Z-A2D Electronics 4CH Isolated ADC Connectors.jpg

2023-11-20T23:23:23.337Z-A2D Electronics 4CH Isolated ADC Top View.jpg

2023-11-20T23:23:23.337Z-A2D Electronics 4CH Isolated ADC ISO View.jpg

2023-11-29T14:31:17.313Z-A2D Electronics 4Ch Isolated ADC With Case Communication Side With Connectors Green.jpg

2023-11-29T14:31:17.313Z-A2D Electronics 4Ch Isolated ADC With Case Communication Side Green.jpg

2023-11-29T14:31:17.313Z-A2D Electronics 4Ch Isolated ADC With Case Iso View Channels Green.jpg

2023-11-29T14:31:17.313Z-A2D Electronics 4Ch Isolated ADC With Case Channel Side With Connectors Green.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A programmable voltage measurement unit with 4 galvanically isolated 0-5V inputs.

What is it? 4 galvanically isolated voltage inputs allows measurement of any voltage you want. 0-5V input range and 16-bits at 15 Samples Per Second is ideal for low voltage high precision acquisitio…

What is it?

4 galvanically isolated voltage inputs allows measurement of any voltage you want. 0-5V input range and 16-bits at 15 Samples Per Second is ideal for low voltage high precision acquisition. Includes a Programmable Gain Amplifier (PGA) for measuring even lower voltage signals.

Ideal for measuring a series stack of lithium-ion cells in a battery, or for removing the possibility of ground loops when measuring different sources. Up to 32 devices can be daisy-chained with RS485 communication layer for up to 128 analog inputs.

SCPI interface is available on the USB port. This device can interface with Python through PyVisa. I have created a python library for this device as well as a GUI for calibrating it automatically using another programmable multimeter and power supply.

GUI and SCPI example are available here: https://github.com/mbA2D/Test_Equipment_Control

Included Parts

4CH Isolated ADC PCB
7x 3.81mm pitch 2-pin pluggable terminal block for RS485, channel inputs, and optional power input
USB-A to USB-C cable
Files for 3D Printed case are available on Printables here: https://www.printables.com/model/661193-case-for-a2d-electronics-4-channel-isolated-adc

See the Documentation link for a full spec sheet and schematic. Source code link goes to the firmware for this board.
