This is a complete DIY kit to build a Sanni Cart Reader V3, an Opensource Retro Games Cartridge Reader/Writer.

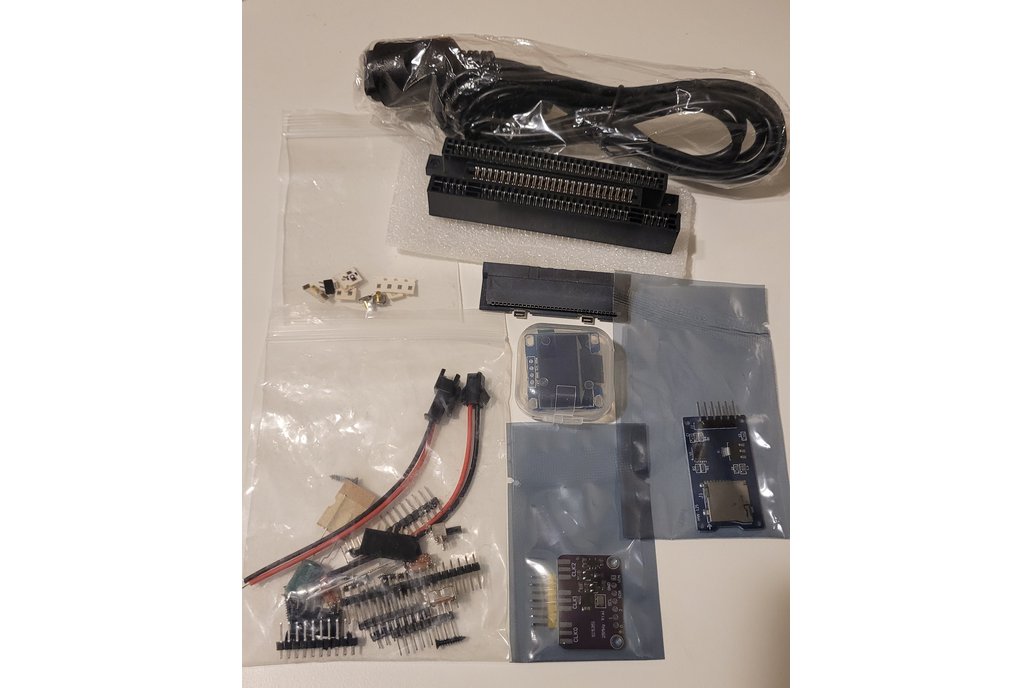

What you get in the goodie bags:

• Arduino Mega 2560 - Voltage Regulator & Transistor already desoldered & Pre-flashed w/ FW v12.4
• Micro SD Card Module
• OLED Display Module
• Hardware Clock Generator Module
• Game Boy Cart Slot
• N64 Cart Slot
• Genesis Cart Slot
• SNES Cart Slot
• N64 Controller Cable
• 100 nF 0805 Capacitor (+1 extra)
• 22 nF Tantalum Capacitor
• 470 uF Capacitor
• 3x 220 0805 Resistors (+1 extra)
• 1x 1k 0805 Resistor (+1 extra)
• 2x 10k 0805 Resistors (+2 extra)
• Male Pin headers
• 1x6 Female Header
• 1x7 Female Header
• AMS1117 3V3 Voltage Regulator
• PIC12F675 - Pre-flashed with snesCIC v1.10.3
• 5 mm RGB LED
• 2x SMD Push Buttons
• 5x SPST Switches
• Power wires
• Printed Parts - Printed in PLA (if selected) *
• 11x screws
• 5x Rubber Stick-On Feet

Optional 3d printed case in PLA with your choice of orange/white as shown in the picture, or a blue/white as shown on my prebuilt listing.

Optional NES to SNES adapter for reading NES games.

Consoles supported in this build:

• Super Nintendo Entertainment System
• Sega Genesis (aka Mega Drive)
• Nintendo 64
• Nintendo 64 Controller Paks
• Nintendo 64 Controller Tester
• Game Boy
• Game Boy Color
• Game Boy Advance

Consoles supported with the use of Adapters (**not included):

• NES
• Flashrom chips
• EPROM chips

See the build guide for what is involved in the build. Required to build:

• Solder, Soldering Iron, Tweezers, etc.
• Screw Driver
• Snips, Pliers, etc.

Required to use:

• Micro SD card
