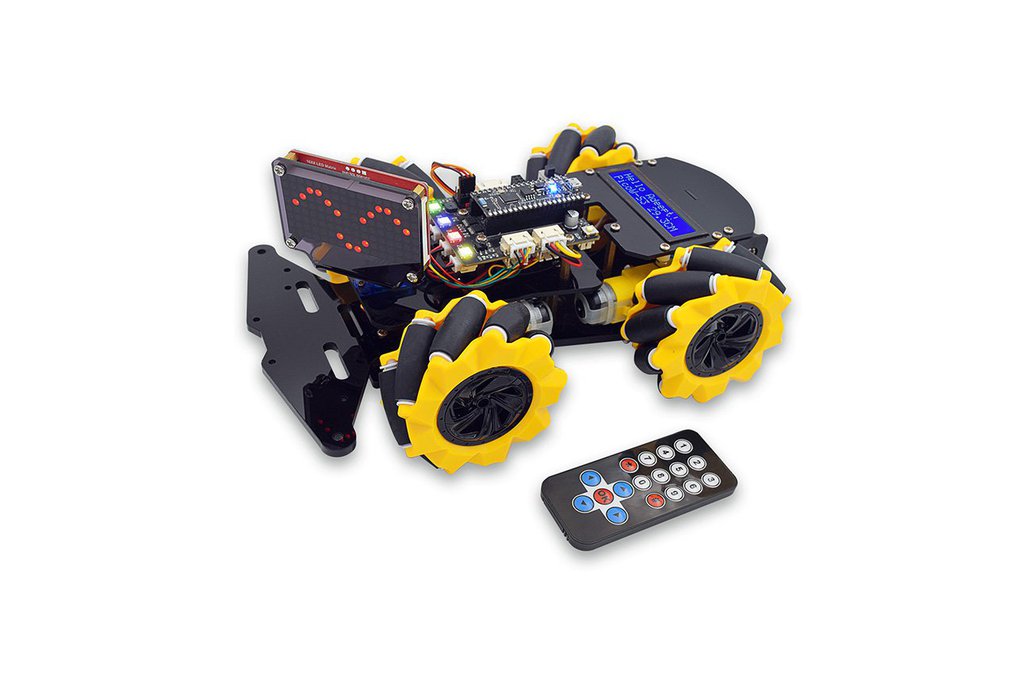

1. This Omni-directional Mecanum Wheels Robotic Car Kit is designed for teens to learn to coding, building and programming. It is developed based on the Banana Pi PicoW-S3(ESP32-S3), using MicroPython as the programming language, the code is easy to read and easy to modify, it is the best choice for learning programming and robotics.

2. The Banana Pi BPi-PicoW-S3 is equipped with a low-power microcontroller ESP32-S3, a development board designed for IoT development and Maker DIY projects. The size is same as the Raspberry Pi Pico board, supports 2.4G Wi-Fi and BT LE dual-mode wireless communication, peripherals are compatible with its low-power hardware design, and consumes only 10uA in deep sleep mode. In terms of programming, PicoW-S3 supports ESP-IDF, Arduino, micropython, CircuitPython and other mainstream platforms.

3. 4WD Omni-directional wheels and DC Motor robotic car uses the latest mecanum wheels for omnidirectional movement and allow your robotics to not only travel forward and backward, but also sideways and diagonally((Left/Right Parallel Shift,Forward/Backward,Upper Left/Right Diagonal shift, Lower Right/Left Diagonal Shift). Perfect for tight spaces.

4. Easy to Assemble and Build - Detailed tutorials(205 Pages, 27 Lessons) and complete Python code are provided. The download link can be found on the card in the box (Paper tutorials are NOT available as the tutorials are updated frequently).

5. Various Control Methods - IR/Wi-Fi APP Remote Control, Obstacle Avoidance, Line Tracking.

Important Tips:

This kit is loose pieces, you need to assemble it yourself!

Lessons:

0001 Adjust the initial angle of the servo

0002 Assemble

001 About Mecanum Wheel Car

002 Introduction Banana Pi PicoW-S3

003 About Pico Robot Expansion Board

004 Configure PicoW-S3 operating environment

01 Blink LED

02 How to Control the onboard WS2812 LED

03 Buzzer

04 Servo Motor

05 Measure Distance

06 Control the 16x8 LED Matrix

07 WS2812 RGB LED

08 How to Control a DC Motor

09 Line Tracking

10 IR receiver and IR remote

11 I2C LCD1602

12 View PicoW-S3 Information

13 Obstacle Avoidance

11 IR Remote Control Car

14 IR Car

15 Line Tracking Car

16 Follow

17 Comprehensive Function

18 Connect WiFi

19 TCP Communication

20 WiFi Car

21 Upload TinyUF2 firmware

Package List:

1 Set Structure Parts(Acrylic)

1x Banana Pi PicoW-S3(ESP32-S3 Board)

1x Pico Robot Expansion Board

1x I2C LCD1602 Display

1x Ultrasonic Module

1x 3CH Line Tracking Module

1x 16x8 LED Matrix Module

1x IR Remote Control

4x TT Motor

4x Mecanum Wheel(2R + 2L)

1x Servo Motor

1x Battery Holder

1x Micro USB Cable

Other Necessary Accessories(Cables, Nuts, Screws, Copper Standoffs, Nylon Standoffs, Tools, etc.)
