ATTiny10 Breakout Board

Name: ATTiny10 Breakout Board
SKU: 27239
Price: 14.00 USD
Availability: InStock

ATTiny10 Breakout Boards - (Pack of 4)

Designed by ADROTECHS in India

This seller is taking a break until April 30, 2025. Sign up below to get an email when they're back!


$14.00

On A Break

ATTiny10 Breakout Boards - (Pack of 4)

ATTiny10 Breakout Board ATTINY10 Breakout Board is SOT-23 to PDIP conversion board. The board is pre-soldered with genuine ATTINY10 MCU and designed to match the grid pattern of a breadboard of any s…

ATTiny10 Breakout Board

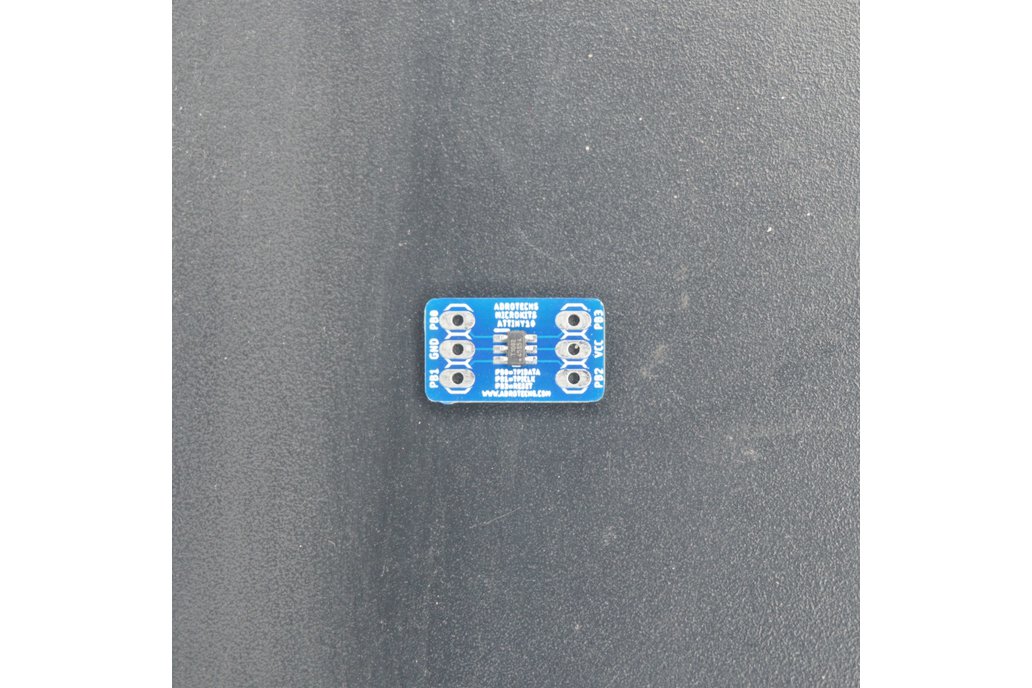

ATTINY10 Breakout Board is SOT-23 to PDIP conversion board. The board is pre-soldered with genuine ATTINY10 MCU and designed to match the grid pattern of a breadboard of any size. The pin definitions are printed on the top of the board to help the customers identify the pins without any issues. The boards are pre-configured with the factory bootloader, and the bootloader section is unlocked. So that users can upload their custom firmware if they want. For programming the MCU, users can use programmers of their choice. But we have mentioned the official programming method and pin supported by the manufacturer’s official programming kit. Users can learn about the basic details of the MCU by going through the table below.

PARAMETRICS DETAILS

PARAMETERS	DETAILS
PART NAME	ATTINY10-TS8R
PIN COUNT	6
PROGRAMMING METHOD	TPI
PROGRAMMING PIN	PB1 – TPICLK , PB0 – TPIDATA , PB3 – RESET
FLASH/PROGRAM MEMORY SIZE	1 KB
RAM	32 BYTES
OPERATING VOLTAGE MIN	1.8 V
OPERATING VOLTAGE MAX	5.5 V
MAX CPU SPEED	10 MHZ
OPERATING TEMPERATURE RANGE	-40°C TO + 125°C

DATASHEETS
