Product Description

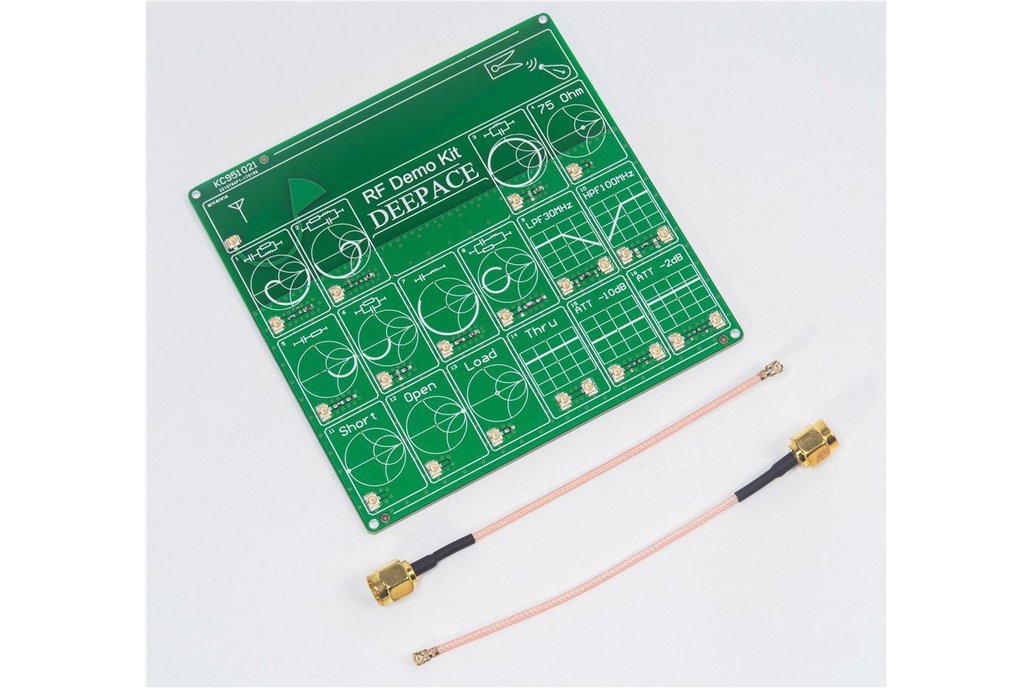

RF Demo Kit is specially designed for RF Network Analyzer learners. It contains a total of sixteen types or RF circuits, among which eleven types are single-port networks, and five are dual-port networks. Also there are directive multi-stage antennas embedded within that can be used for both signal reception and emission. Furthermore, it is equipped with three well-performing (open-short-load) calibrators that are fit for UFL connectors with 1mm electrical length, which the operator can perform calibration with on the VNA before measuring the PCB antennas.

Frequency Range of Multi Band Antenna (VSWR <2)

560MHz – 600MHz

1430MHz – 1700MHz

2450MHz – 2670MHz

3200MHz – 3670MHz

4100MHz – 4500MHz

5100MHz – 5970MHz

The Return Loss of LOAD Calibrator

Better than 20dB (<2.5GHz)

Better than 10dB (2.5GHz – 7GHz)

Pre-set the measuring frequency range on the VNA first, and then connect the VNA to Demo Kit with a UFL cable to perform calibration, there the operator can start RF network measuring.
