Product Introduction

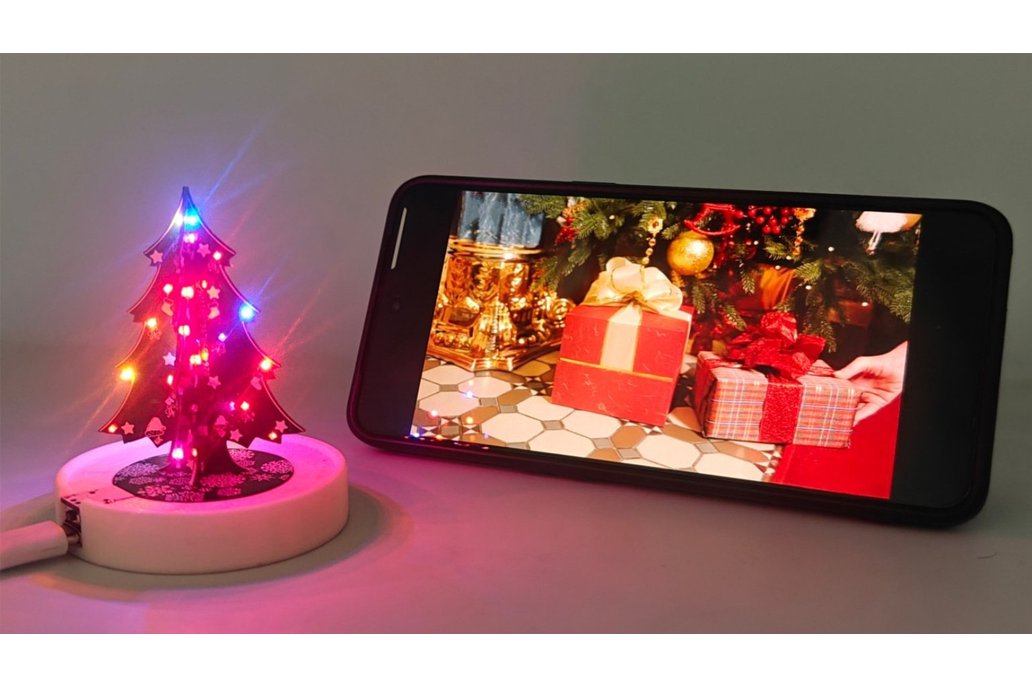

1. This Christmas tree has built-in WLED firmware by default, which can realize various cool lighting effect modes with audio. The Christmas tree uses WS2812 to make the colors richer.

2. Based on wled, Christmas tree lights can be connected to Home Assistant for control management and intelligent control.

3. The Christmas tree has WiFi and Bluetooth functions (implemented through programming).

4. The Christmas tree is very flexible to use. The program can be downloaded via USB, and you can personalize the Christmas tree to achieve cool effects.

5. Can be programmed through ArduinoIDE, PIO Home, ESP-IDF. The playability possibilities for your Christmas tree are endless.

6. The Christmas tree is powered by USB 5V.

7. The base is 3D printed.

8. Open source hardware, schematic files provided

DIY friends are in luck! ! ! ! ! !

Hardware:

1.ESP32-U4WDH

2.CH340K

3.With digital microphone

4.WS2812_Lamp

Instructions for use:

Before using the Christmas tree, configure the network for the Christmas tree. Use your mobile phone to search for nearby networks. Name: WLED-AP. Password: wled1234 (required for the first connection).

Next time you visit wled UI, You must use the IP address to access (check the IP address of wled by logging into the router backend). If you need to reset the Christmas tree network and configuration, please press and hold the button on the Christmas tree for more than 12 seconds. A short press can turn on and off the Christmas tree. Press and hold for more than 2 seconds to switch colors.

Product size

Shipping List

• Programmable Christmas tree *1
