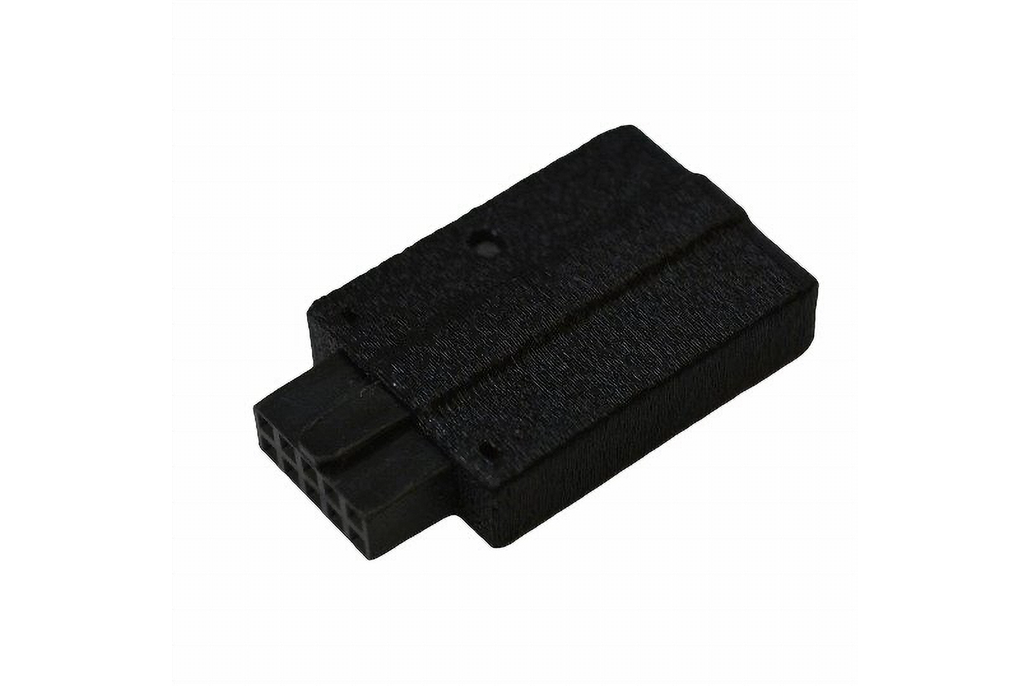

MOD-WIFI-ESP8266-Boxed

Name: MOD-WIFI-ESP8266-Boxed
SKU: 30002
Price: 6.80 USD
Availability: InStock

MOD-WIDI-ESP8266 is UEXT expansion module with the famous ESP8266 UART to WIFI IC.

Sold By Agon Australia

2023-04-14T09:02:25.428Z-MOD-WIFI-ESP8266 - Tindie 2.jpg

2023-04-14T09:02:25.428Z-MOD-WIFI-ESP8266 - Tindie.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Make sure you join the Discord https://discord.gg/q6bUJuCCbM

MOD-WIDI-ESP8266 is UEXT expansion module with the famous ESP8266 UART to WIFI IC.

MOD-WIFI-ESP8266 is UEXT expansion module with the famous ESP8266 UART to WIFI IC. With this module you can add WIFI capabilities to other Olimex development boards with UEXT connector. Our module co…

The idea of MOD-WIFI-ESP8266 is to use it as an easy hardware expansion of existing Olimex boards. That is why it has UEXT connector. You plug it in another board with UEXT connector and the hardware connections are complete. It is visible in the schematics that MOD-WIFI-ESP8266 uses only first 4 pins of the UEXT – #1 (3.3 Vcc), #2 (GND), #3 (RXD), #4 (TXD). This means only a data UART interface is available. The rest of the pins of the chip are not routed for easier access - if you need more signals consider MOD-WIFI-ESP8266-DEV or ESP8266-EVB. To update the firmware of the board you would need to change the position of the SMT jumpers.

MOD-WIFI-ESP8266 is recommended for people that already have some experience with ESP8266. Consider ESP8266-EVB if you are a complete beginner. If you want to add WIFI capabilities to own board, consider also MOD-WIFI-ESP8266-DEV.
