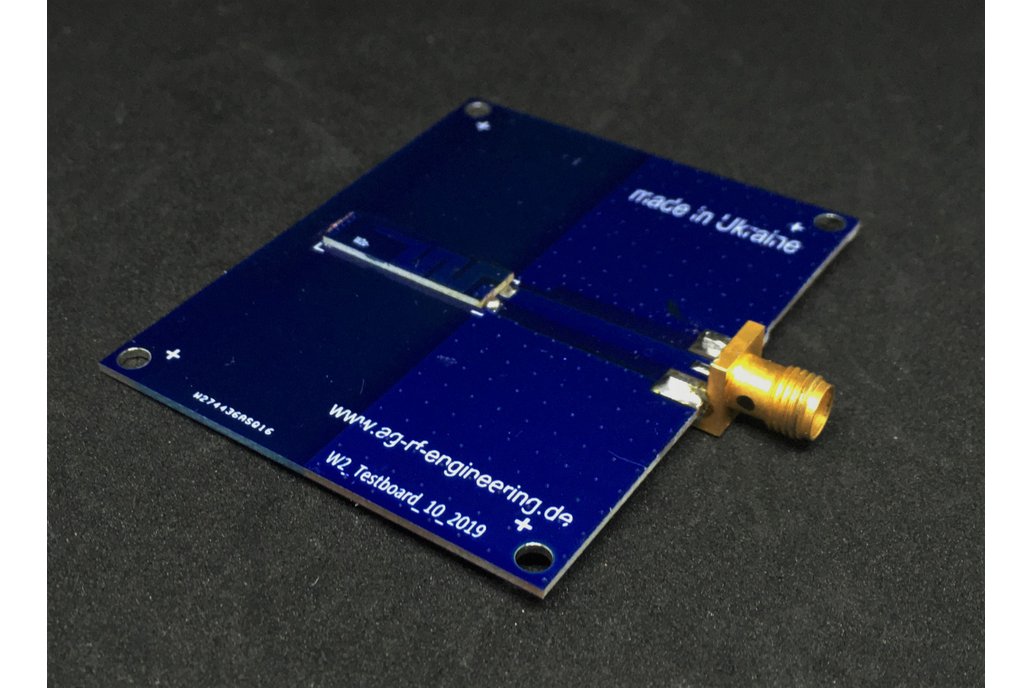

SMD 2.2-2.8GHz antenna for Wi-Fi, BT, ZigBee, WiMax, 4G applications with test board
Designed by AG RF Engineering & Consulting in UkraineNo shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up to get notified when this product is back in stock!
3 wideband high efficiency SMD antennas with evaluation board. This is an simple way to integrate SMD antenna into your IoT device. It includes 3 antenna versions tuned up and down by frequency (see …
Read More…3 wideband high efficiency SMD antennas with evaluation board. This is an simple way to integrate SMD antenna into your IoT device. It includes 3 antenna versions tuned up and down by frequency (see + and - markings). What enables an integration in different environment situations. The wideband character of the antenna reduces the antenna sensitivity to the complex environment situation.
Specification: Frequency band (90% efficiency): 2.2 - 2.8GHz Frequency band (30% efficiency): 2.0 - 3.5GHz Gain max: 2dBi Efficiency (2.4-2.5GHz): 96% Size: 26x11mm Radiation pattern: Thoroidal, quasy-isotropic Application: smd antenna for ca. FR4 PCB. Support: application note, integration service Brand: "Chip&Cheap" Discount: On request
High efficiency, wideband, low tolerance antenna for integration on PCB for application around 2.4GHz freuqncy band. High efficiency and wideband let extend the work range of the wireless device and battery life. Integration support can be requested.
