Update (Friday 28 June) Stock available now. There will be more on Monday. Overview The Pico Display Base Board is a printed circuit board (PCB) designed for a Raspberry Pi Pico board (“Pico”) and a…
Read More…Update (Friday 28 June) Stock available now. There will be more on Monday.

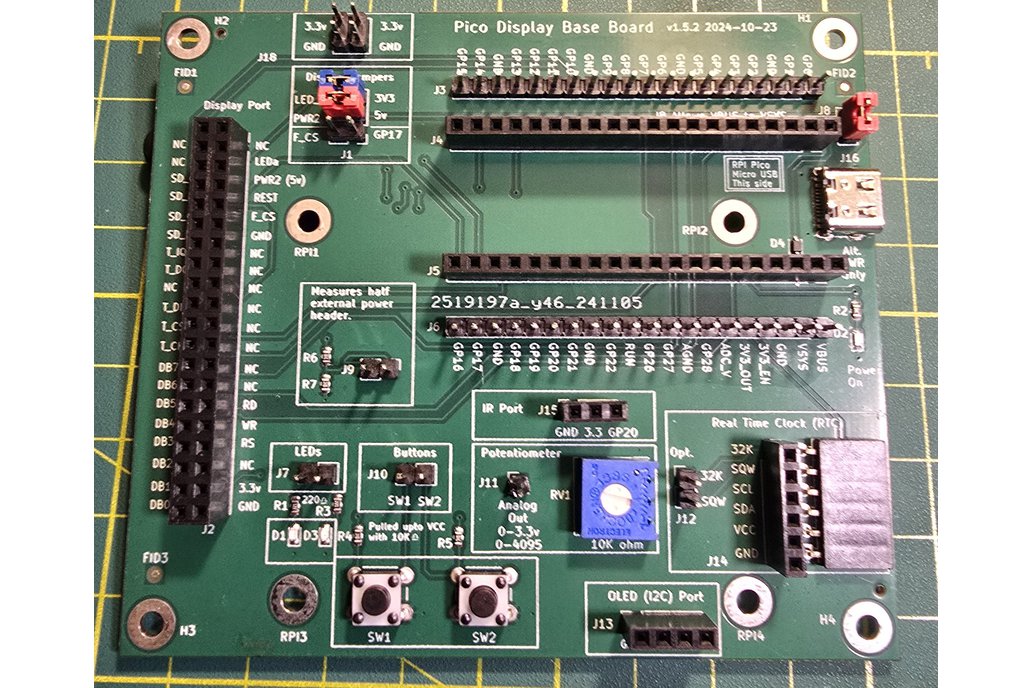

The Pico Display Base Board is a printed circuit board (PCB) designed for a Raspberry Pi Pico board (“Pico”) and a SSD1963 LCD display board. The PCB can be used for generic Pico Arduino (C code) or Thonny (MicroPython) projects. The PCB is especially suited to projects requiring a medium or large LCD Display with a touchscreen and integrated SD card. The pictures are demonstrating the PCB with a five (5) inch 800*480 display.
The PCB includes various onboard components and ports for external devices. The male headers provide a flexible means to wire connections to the components. The ports have PCB connections to Pico pins and permit an easy way to simply insert the external devices. There should be no need to solder any wires nor drill holes for any parts.
The product is only the PCB. The Pico, display board, wires and the external devices are not included. However these low-cost components are available from popular online retailers.
The matching Pico male headers provide an easy means to wire to onboard devices or to test the with a Logic Analyzer. The male headers can also be used to add connections to sensors and devices on an external breadboard.
The PCB supports several external devices via ports:
DS3231 board with a 3-volt CR2032 coin battery.
0.96 inch OLED dsiplay board.
Infrared Receiver board.
The 40-pin Display Port is wired to specific GPIO pins to provide an 8-bit parallel interface for the 800*480 LCD display and SPI pins for the Thin Film Transistor (TFT) Touchscreen and SD Card. The PCB includes jumpers for LCD display power and for an assigned Pico pin for the display board’s optional flash chip. The Display Port supports various LCD display sizes (4.3, 5, and 7 inch). A jumper pin allows displays up to five inches to operate from Pico power (or from another source.) The SSD1963 display boards all have a “standard” 40-pin male header, and so the desired display board is just inserted into the matching 40-pin female port on the PCB.
This PCB is special because of the display interface that can drive the LCD display, touchscreen and the integrated SD card. And, because of its compatibility with the PicoMite/WebMite firmware.
The PCB was designed for a project using the WebMite firmware. The PicoMite firmware provides the MMBasic language and supports all of the external devices (mentioned above). The WebMite provides the same features of PicoMite but includes additional features for the networking capabilities of the RPI Pico W. Either Pico will operate on this PCB. MMBasic extends the GW BASIC language and includes advanced graphics, PIO support, virtual and SD filesystem, seamless RTC interface, and easy-to-use interfaces to many popular sensors.
PicoMite/WebMite is available at https://geoffg.net. Authors: Peter Mather, Geoff Graham, and Mick Ames.
