Thermocouples are very useful for temperature measurement, especially wide range and high temperature situations, which are common in projects such as :

• Reflow oven
• Furnace
• BBQ Temperature Controller

While K Type thermocouple are easy to source and relatively low priced, project makers may find interfacing the output (a very small analog voltage) of such probes to an MCU (Mostly prefer digital input) rather tricky.

Thanks to the MAXIM MAX31855K, this IC does everything for the project makers.

Our breakout board using the MAX31855, can be easily interfaced with any microcontroller, even one without an analog input and our board is 3V and 5V compatible. (Through connecting different pins)

This breakout board has the IC, level translating circuitry and the standard K Type connector, all assembled and tested.

Works with any K type thermocouple

Will not work with other types of thermocouple K type (Typ. -200°C to +1350°C output in 0.25 degree increments) (Note : K thermocouples have about ±2°C to ±6°C accuracy)

MAXIM MAX31855 :

• Performs cold-junction compensation and digitizes the signal
• Output in a signed 14-bit, SPI-compatible, read-only format
• Detects Thermocouple Shorts to GND or VCC
• Detects Open Thermocouple
• 3.3V Operating Voltage
• 8 Pin SO Package

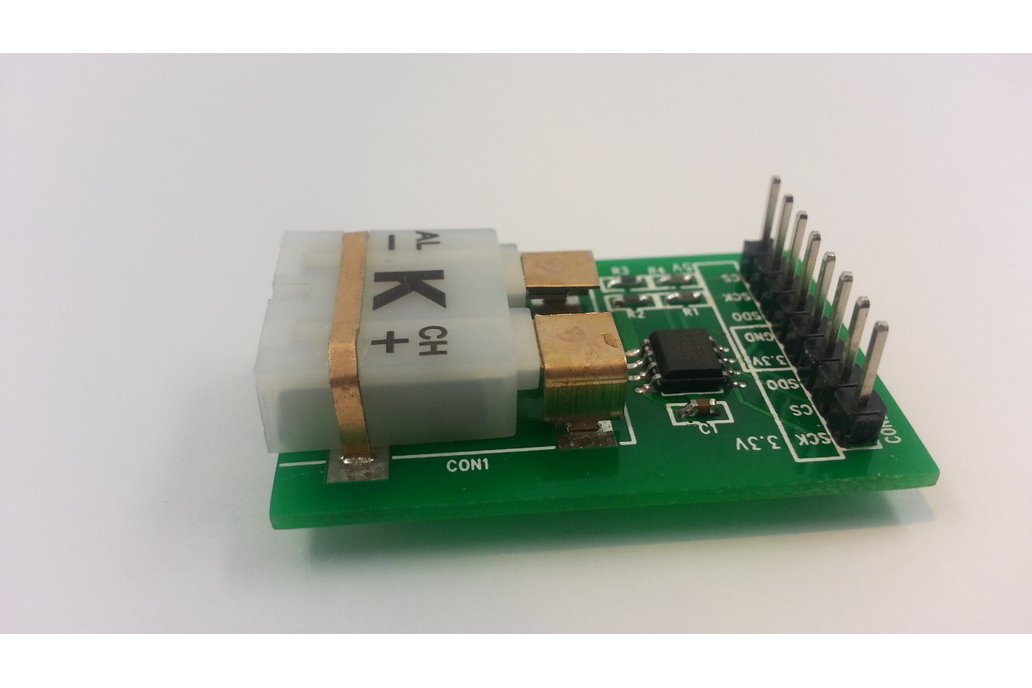

(Pictures showing Breakout board in operation with Arduino and K Type probe) (Male Type K Plug ; Arduino and probe not included)

Visit our store for companion products (We have good kit deal offer)

• K Type Thermocouple
