A modular logic kit for discovering logic, building, or demonstration logic circuits.
Designed by educat.ninja in ChinaThis seller is taking a break. Sign up below to get an email when they're back!
Sign up and we'll send a reminder when the seller returns!

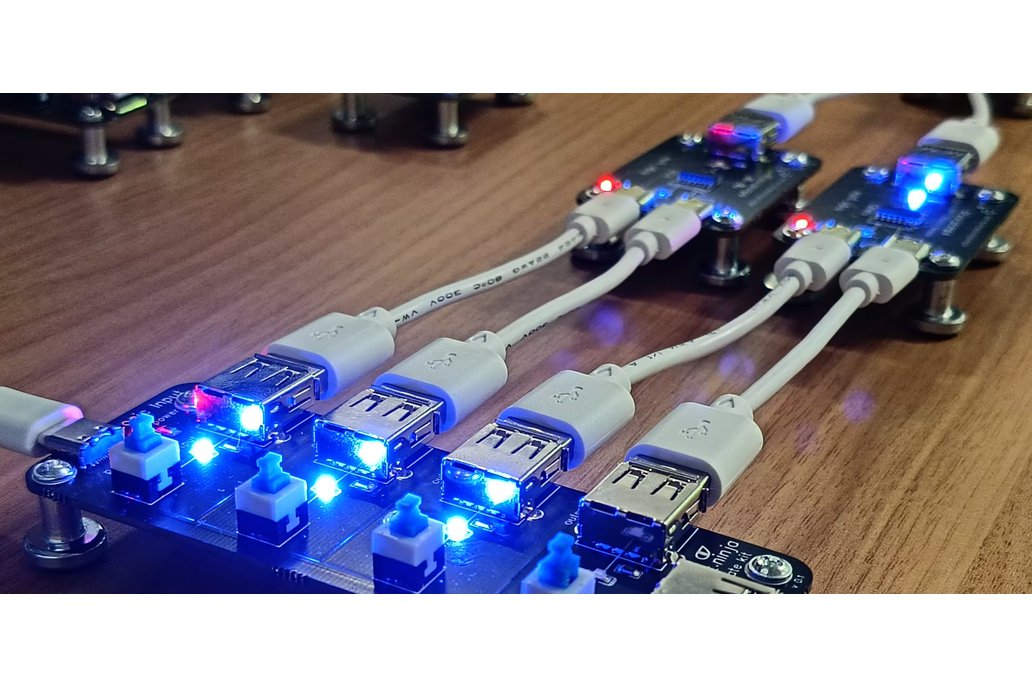

A modular logic gate kit containing 2 NOT, 3 AND, 4 NAND, 2 OR, 4 NOR, and 3 XOR gates, together with 2 logic input (power) boards and 6 splitters. Powered through USB by any USB power adapter or pow…
Read More…A modular logic gate kit containing 2 NOT, 3 AND, 4 NAND, 2 OR, 4 NOR, and 3 XOR gates, together with 2 logic input (power) boards and 6 splitters. Powered through USB by any USB power adapter or power bank.
A logic gate kit which allows students to begin to explore Logic with working logic gates, build logic circuits, including half and full adder circuits - combining the two to make a working two-bit (half +full) adder circuit, Universal NAND and NOR gate modelling.
I created this when I was teaching logic in Physics lessons as I remembered being very confused when exploring the logic kit at my school as a student.
It allows learning by trial and error, exploring the function of each board concentrating only on the logic signal without having to worry about powering each gate.
