Overview:

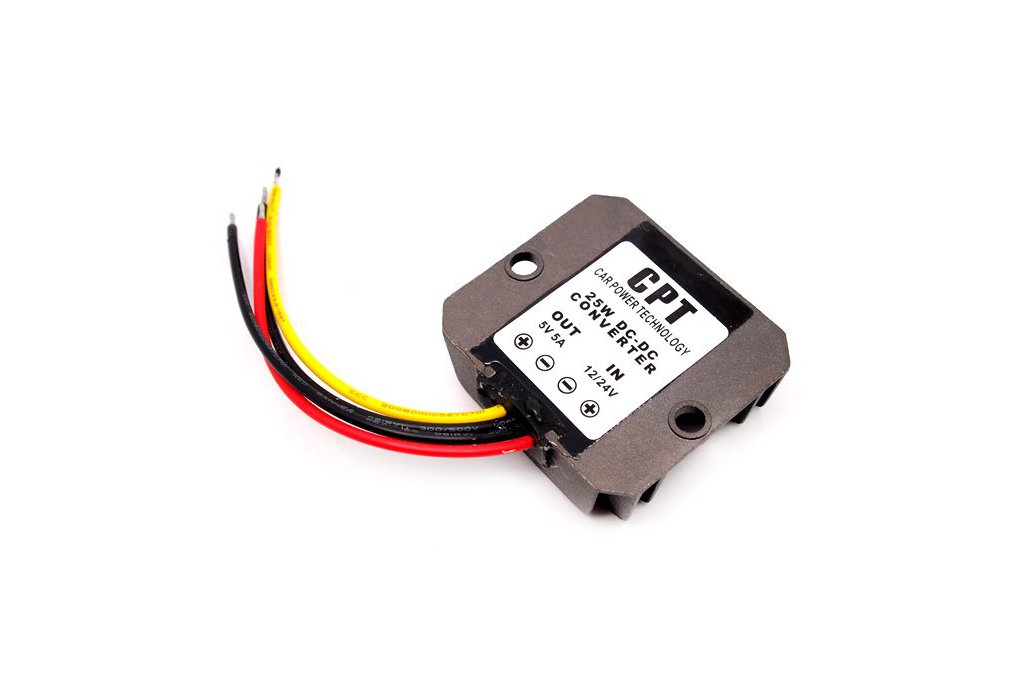

CPT-C5 is a power converter module output 5V. Low heat, adopt synchronous rectification technology (5A long-term without any additional cooling measures).

Features:

• Conversion efficiency of 96%.
• Epoxy Glue, waterproof, shock, moisture, suitable for harsh environments.
• Short circuit protection, over current, over temperature protection, when the fault is solve then back to work.
• Ultra-small size 66 * 60 * 23mm(L * W * H, without cable), about 100 grams.

Specifications:

• Input voltage DC12/24V (8-35V)
• Output voltage: 5V
• Output Power: 25W
• Soft-start time: 500mS
• Operating temperature: Industrial (- 40°C to +85°C)
• Full load temperature: 50°C
• Load Regulation: ± 1%
• Voltage regulation: ± 2%
• Dynamic response speed: 5% 200uS
• Input reverse polarity protection: No, if necessary, add a series diode at input port

Application ideas:

• Solar power
• Taxi advertising screen
• LCD TV
• Monitoring systems
