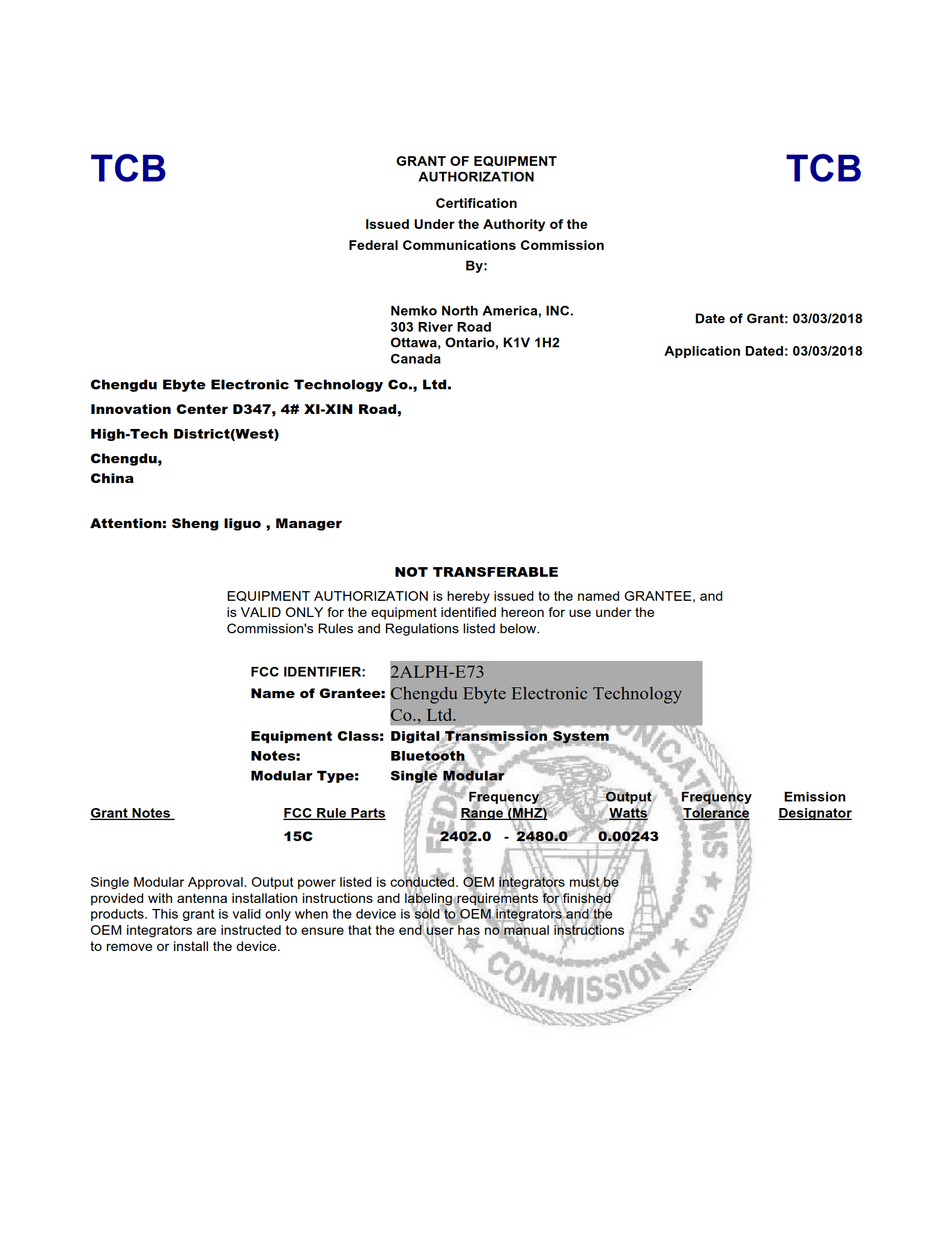

nrf52832 Bluetooth Module (CE, FCC, Half-Cut Hole)

Name: nrf52832 Bluetooth Module (CE, FCC, Half-Cut Hole)
SKU: 14497
Price: 10.00 USD
Availability: OutOfStock

nrf52832 Bluetooth Module

Designed by Smart-Prototyping in China

This seller is taking a break. Sign up below to get an email when they're back!

nrf52832 Bluetooth Module (CE, FCC, Half-Cut Hole) 1

nrf52832 Bluetooth Module (CE, FCC, Half-Cut Hole) 2

nrf52832 Bluetooth Module (CE, FCC, Half-Cut Hole) 3

nrf52832 Bluetooth Module (CE, FCC, Half-Cut Hole) 4

$10.00

On A Break

smartprototyping

nrf52832 Bluetooth Module

Description This nrf52832 module is a small size and high quality BLE module. It has well designed PCB antenna and an IPX antenna connector on board. The module breakout almost all the pins of nrf528…

Description

This nrf52832 module is a small size and high quality BLE module. It has well designed PCB antenna and an IPX antenna connector on board. The module breakout almost all the pins of nrf52832, very easy to embed into any project.

Nrf52832 BLE module Pin map, download PDF version here.

nrf52832_module_pin_map

Specifications

Module number: E73-2G4M04S1B
Manufacturer: EBYTE
Bluetooth IC: nrf52832
Operation Voltage: 1.8 - 3.6 V, typical 3.3V
Transmitter Current: 13 - 15mA
Transmitting Power: 3.8 - 4.3dBm
Receiver Current: 4 - 6mA
No-load Current: 1 - 3uA
Recommend Frequency: 2379 - 2496MHz
Module dimension: 17.5 x 28.7 mm
Weight: 1.8g

Dimension:

nrf52832_module_dimension

Changing antenna note: The module comes out with the inductor soldered, which means it uses PCB antenna, change it to the other side if you use IPX antenna.

nrf52832_module_change_antenna

Links:

nrf52832 Datasheet

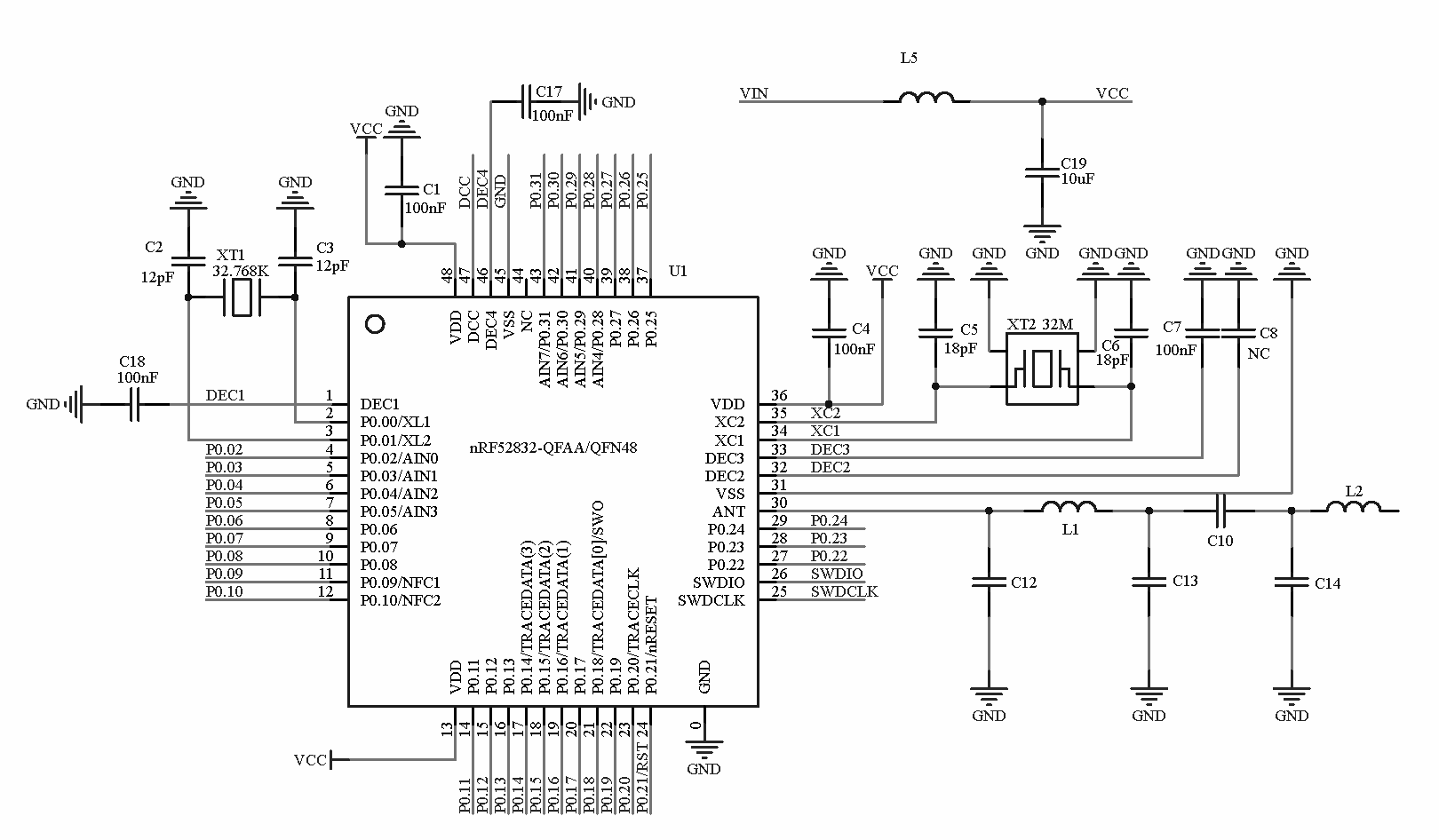

nrf52832 module Schematic
