Description

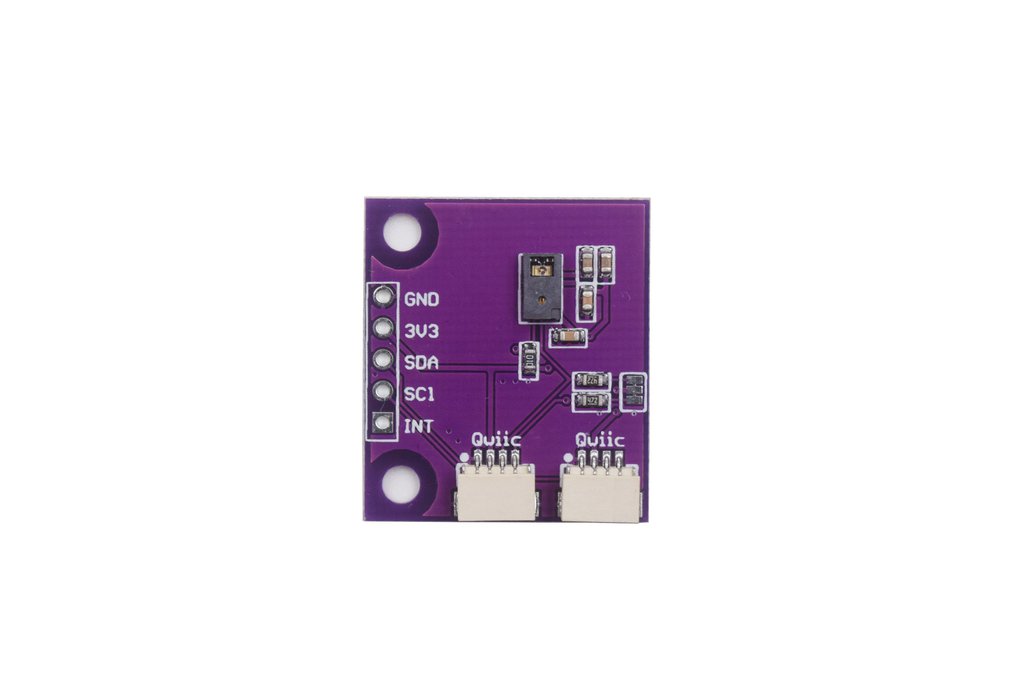

This is a Qwiic breakout board based on PAJ7620U2. It can recognize 9 human hand gesticulations such as moving up, down, left, right, forward, backward, circle-clockwise, circle-counter clockwise, and waving.

The normal gesture detecting range is 5 to 15 cm, and the operating view angle is at 60° diagonally. The PAC7620 also offer built-in proximity detection for the purpose of sensing an object approaching or departing.

As it is a Qwiic compatible module, you can use Qwiic cable to daisy chain it with other Qwiic devices, no need soldering and jumper wire connecting!

Specifications:

• Operation Voltage: 3.3V
• Current: 2.3mA
• Gesture speed: 60~600°/s in normal mode
• Interface: I2C
• IC: PAJ7620U2
• I2C address: 0x73
• Dimension: 26.3 x 23.3mm
• Weight: 1.6g

Link:

• PCB Source file
• PCB schematic
• Demo code
• Sensor PAC7620 Datasheet
