What is it?

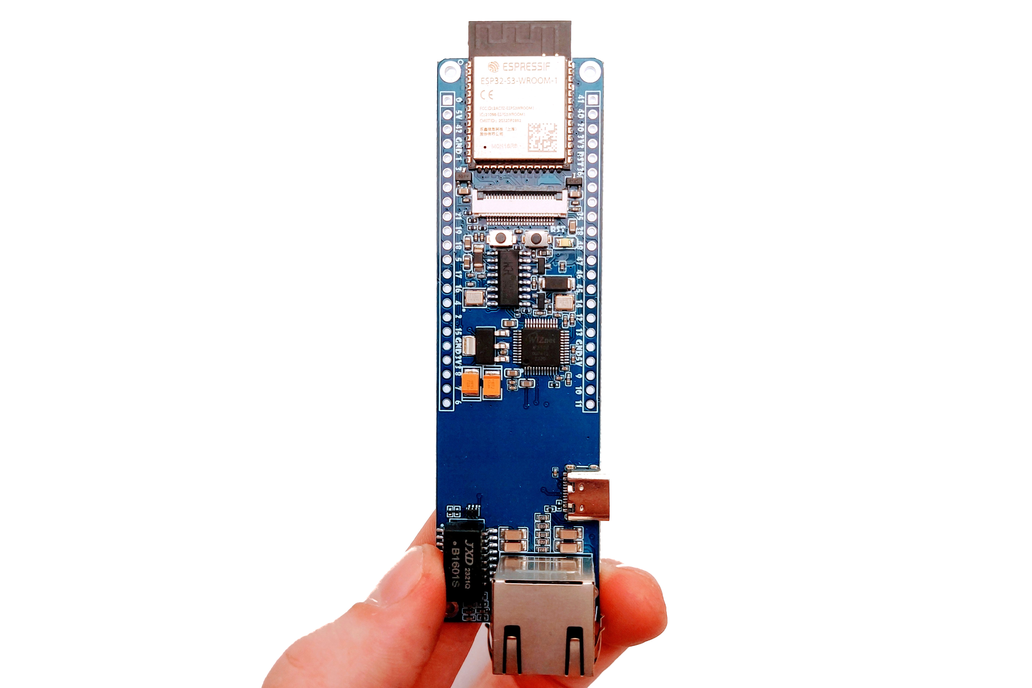

This is an upgraded version of Esp32-Stick development board with the Ethernet support. The board also allows connecting a camera and uses Esp32-S3 chip.

Why did you make it?

It was made because the original Esp32-Stick boards lacked the camera support. Moreover it was impossible to handle both the camera and the Ethernet using classic vanilla Esp32 since both peripherals require a lot of pins. So we decided to build the upgraded board around Esp32-S3, which has much more pins and W5500 SPI Ethernet module.

What makes it special?

Pin-to-pin compatibility with other Esp32-Stick-Cam boards, Camera and Machine Learning examples! (Warning V5.0.0 version has a slightly different pinout(Ethernet pins are moved))

• Ov2640 and Ov5640 Camera support.
• 36 Gpios(17 are not used by Ethernet or the camera)
• USB Type-C
• Esp32-Stick-Cam boards are fully programmable in Arduino and are supported in ESPHome home automation environment.
• No external USB-UART converter is required, ready for plug-and-play programming!
• All the Esp32-Stick-Cam boards have the same length and width so they can easily be replaced with one another.
• Any code written for one board is compatible with another because they share the same CPU and pinout.

Characteristics

• ESP32-S3-WROOM-1 (N16R8) with 16MB Flash, 8MB ram.
• USB-C connector.
• 36 Gpios(17 are not used by Ethernet or the camera).
• W5500 chip for the Ethernet.
• CH340G USB-UART converter.
• USER-Led(GPIO2).
• Reset button and User button(GPIO0).
• Accepts power through: USB, External source (3.3V-5V)
• the 3.3V branch(Ams1117) can provide 700mA of current.

Examples

• Basic Camera+Ethernet Platofrmio Example: https://github.com/allexoK/Esp32-Stick-Cam-Boards-Platformio
• Machine Learning tutorials are provided in pdf:
• https://github.com/allexoK/Esp32-Stick-Cam-Machine-Learning-Guides

Schematics

The schematics is available from the datasheet link here on Tindie
